-43%

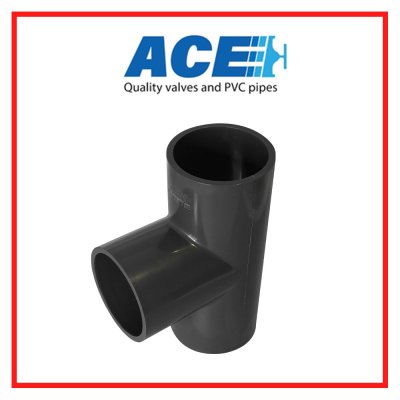

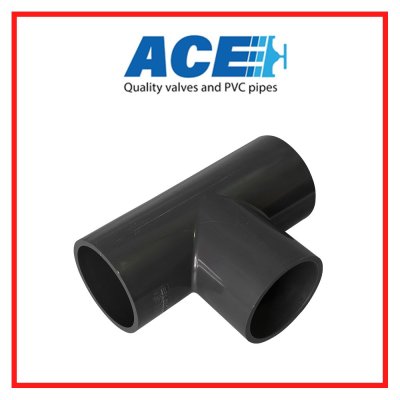

ข้อต่อ สามทาง 90 องศา 2" PVC TEE 90°-WS B
SKU : TF01-55
ACE 55(2") 2 " PVC TEE 90°-WS B (update 28/04/2023)
฿168
฿0
฿168
฿96
Member
฿0
Member
฿0
There is an installment plan with a 0% interest rate (you can check the monthly installment calculation on the payment page).
Promotion
Minimum spent ฿5,000 discount 4%
Minimum spent ฿20,000 discount 5%
Minimum spent ฿40,000 discount 6%
Minimum spent ฿50,000 discount 7%
Quantity
Request a Quote
รายละเอียดสินค้า
ข้อต่อ สามทาง 90° ACE 18-100(1/2"-4.) PVC
อุปกรณ์ข้อต่อท่อพีวีซีแข็ง สำหรับใช้รับความดัน Pipe TS Fittings For Pressure Pipe ใช้กับท่อระบบน้ำประปาและสระว่ายน้ำ
Detailed Description
Item Code : TF01
- Higher Quality PVC
-Controlled by specialist team in every process and manufactured by global standard hi-tech machines.
- Resistance to pressure and compression
- Resistance to acidity and alkalinity
- Rust-proof, water tightness and toughness
- Non-toxic substance
- Resistance to UV
Care, Warning, Instruction
- Handle by care, protect from fire.
| รุ่น | Size | Outsite Dia | Socket Type | Structure Diameter | ||||
| D0 | d1 | d2 | I | d | L | H | ||
| TF01-18 | 1/2” | 32 | 21.54 | 21.23 | 22.22 | 16.5 | 74.5 | 37 |
| TF01-25 | 1" | 48.5 | 33.65 | 33.27 | 28.58 | 28 | 97 | 48 |
| TF01-55 | 2" | 75 | 60.63 | 60.17 | 38.1 | 52 | 146 | 73 |
| TF01-100 | 4" | 135 | 114.76 | 114.07 | 57.15 | 109 | 239 | 119.5 |
