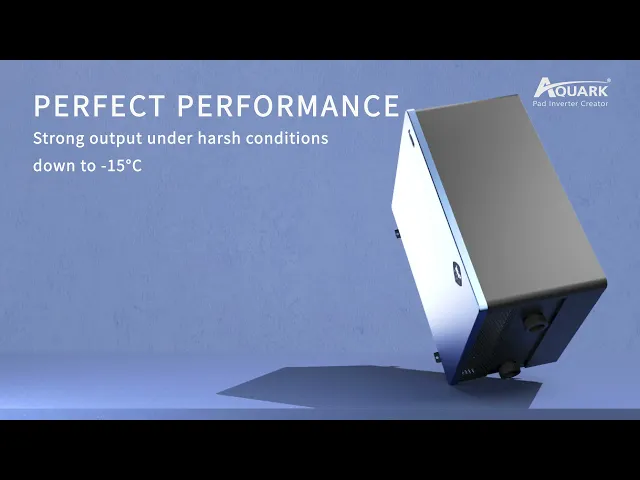

MR PERFECT INVERTER HEAT PUMP 40.5 kW/ 400V 3 Ph/ 50Hz
SKU : HPC-AQK-MPC410S
0 Sold
฿514,244
฿29,120
Quantity
Short Description
40.5 KW /400V 3 Ph / 50Hz MR PERFECT INVERTER HEAT PUMP (update 30/03/2026)
Brands: Aquark
Wishlist
Compare
Product description
Download
VDO
Mr. Silence 30 Inverter Heat Pump
The Mr. Silence 30 Inverter Heat Pump by Aquark is an advanced pool and spa heater and chiller. Powered by InverPad® Turbo technology, it operates at an exceptionally quiet noise level of just 36.4 dB(A). It is designed to keep your swimming pool at a comfortable temperature all year round, no matter if it's summer or winter.
Application
- All types and sizes of swimming pools
- Swimming pools with integrated spa systems
- Hot Tubs
Features
- Heating and cooling capabilities for both swimming pools and spas
- Adjustable temperature control for warm or cool water systems
- Reliable operation even in extreme weather conditions down to -20°C
- Automatic defrost system maintains maximum heating efficiency
- Durable spiral titanium heat exchanger
- Modern and easy-to-use LED display
- Built-in Wi-Fi allows for convenient remote control via smartphone
- Compatible with the smart InverGo app, granting full access to all heat pump controls and additional features
Technical Info (1)
| Mr. Silence 30 Heat Pump Buying Guide | ||||
|---|---|---|---|---|
| Model | Heating Capacity | BTU | Power Supply | Input Current (A) |
| MPXC100 | 10 kW | 30,729 | 230V / 1Ph / 50Hz | 0.70 ~ 5.87 |
| MPXC120 | 12 kW | 40,973 | 230V / 1Ph / 50Hz | 0.78 ~ 6.65 |
| MPXC150 | 15 kW | 51,216 | 230V / 1Ph / 50Hz | 1.00 ~ 8.17 |
| MPXC170 | 17.5 kW | 58,045 | 230V / 1Ph / 50Hz | 1.17 ~ 9.65 |
| MPXC190 | 19.5 kW | 66,581 | 230V / 1Ph / 50Hz | 1.35 ~ 11.09 |
| MPXC230 | 23 kW | 78,531 | 230V / 1Ph / 50Hz | 1.43 ~ 11.87 |
| MPXC280 | 28 kW | 95,603 | 230V / 1Ph / 50Hz | 1.91 ~ 15.83 |
| MPXC280S | 28 kW | 95,603 | 400V / 3Ph / 50Hz | 0.65 ~ 5.43 |
| MPXC340 | 34 kW | 116,090 | 230V / 1Ph / 50Hz | 2.30 ~ 19.26 |
| MPXC340S | 33.5 kW | 114,383 | 400V / 3Ph / 50Hz | 0.77 ~ 6.41 |
| MPXC420S | 42 kW | 143,405 | 400V / 3Ph / 50Hz | 1.03 ~ 8.52 |
Performance Data – ข้อมูลด้านประสิทธิภาพ (2)
| Model | COP | COP @ 50% | Rec. Pool Vol. (m³) * | Operating Air Temp | Power Phase |
|---|---|---|---|---|---|
| MPXC100 | 19.5 ~ 7.8 | 14.4 | 20 ~ 35 | -20°C – 43°C | Single Phase |
| MPXC120 | 19.7 ~ 8.1 | 14.5 | 25 ~ 45 | -20°C – 43°C | Single Phase |
| MPXC150 | 20.0 ~ 8.1 | 14.8 | 30 ~ 55 | -20°C – 43°C | Single Phase |
| MPXC170 | 20.0 ~ 7.8 | 14.9 | 35 ~ 65 | -20°C – 43°C | Single Phase |
| MPXC190 | 20.0 ~ 7.8 | 14.6 | 40 ~ 75 | -20°C – 43°C | Single Phase |
| MPXC230 | 20.0 ~ 8.0 | 15.3 | 45 ~ 80 | -20°C – 43°C | Single Phase |
| MPXC280 | 20.0 ~ 7.8 | 14.7 | 60 ~ 90 | -20°C – 43°C | Single Phase |
| MPXC280S | 19.2 ~ 7.8 | 14.7 | 60 ~ 90 | -20°C – 43°C | Three Phase |
| MPXC340 | 20.0 ~ 7.8 | 14.6 | 66 ~ 110 | -20°C – 43°C | Single Phase |
| MPXC340S | 19.58 ~ 8.0 | 14.4 | 66 ~ 110 | -20°C – 43°C | Three Phase |
| MPXC420S | 18.9 ~ 7.8 | 14.2 | 75 ~ 120 | -20°C – 43°C | Three Phase |
Acoustics & Flow Info (3)
| Model | Sound Level @ 1m dB(A) | Sound Level 50% @ 1m dB(A) | Flow Rate (m³/h) | Pipe Size (mm) |
|---|---|---|---|---|
| MPXC100 | 36.0 ~ 41.8 | 36.4 | 2 ~ 4 | 50 |
| MPXC120 | 36.0 ~ 42.5 | 36.5 | 2 ~ 4 | 50 |
| MPXC150 | 36.3 ~ 43.9 | 38.4 | 3 ~ 4 | 50 |
| MPXC170 | 37.2 ~ 45.5 | 40.3 | 4 ~ 6 | 50 |
| MPXC190 | 37.5 ~ 46.0 | 40.5 | 5 ~ 7 | 50 |
| MPXC230 | 37.2 ~ 45.5 | 41.0 | 6 ~ 9 | 50 |
| MPXC280 | 37.9 ~ 48.2 | 41.2 | 8 ~ 10 | 50 |
| MPXC280S | 37.9 ~ 48.2 | 41.6 | 8 ~ 10 | 50 |
| MPXC340 | 38.2 ~ 48.7 | 43.0 | 10 ~ 12 | 50 |
| MPXC340S | 38.3 ~ 48.8 | 43.2 | 10 ~ 12 | 50 |
| MPXC420S | 38.8 ~ 49.3 | 43.6 | 12 ~ 18 | 50 |
Note: The information above is for reference only. For specific data, please refer to the nameplate on the unit.
* The recommended pool size applies to private pools with a thermal pool cover.
Dimensions
| Model | Description | Dimension (mm.) | ||
|---|---|---|---|---|
| A | B | C | ||
| HPC-AQK-MPXC100 | MR SILENCE 30 / 10 kW | 1030 | 655 | 505 |
| HPC-AQK-MPXC120 | MR SILENCE 30 / 12 kW | 1030 | 760 | 505 |
| HPC-AQK-MPXC150 | MR SILENCE 30 / 15 kW | 1030 | 760 | 515 |
| HPC-AQK-MPXC170 | MR SILENCE 30 / 17.5 kW | 1030 | 1100 | 515 |
| HPC-AQK-MPXC190 | MR SILENCE 30 / 19.5 kW | 1030 | 1030 | 515 |
| HPC-AQK-MPXC230 | MR SILENCE 30 / 23 kW | 1030 | 1030 | 515 |
| HPC-AQK-MPXC280 | MR SILENCE 30 / 28 kW | 1030 | 1030 | 515 |
| HPC-AQK-MPXC280S | MR SILENCE 30 / 28 kW | 1030 | 1030 | 515 |
| HPC-AQK-MPXC340 | MR SILENCE 30 / 34 kW | 1030 | 1030 | 515 |
| HPC-AQK-MPXC420S | MR SILENCE 30 / 42 kW | 1030 | 1030 | 515 |
