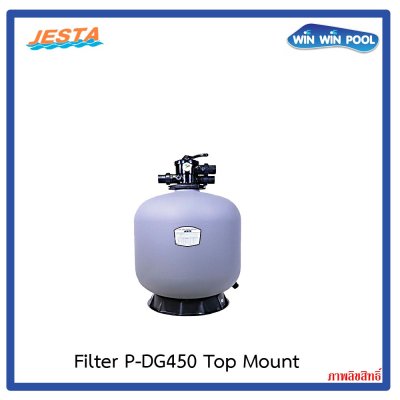

SandFilter JESTA P-DG450 18" Top Mount
SKU : FI-JT-SF-DG450
0 Sold
฿15,250
฿8,693
Quantity
Short Description
JESTA Sand Filter P-DG450 Top Mount Size 18" Valve 1.5 Flowrate 8.00 m³/h Sand Volume 50 kg (Update 27/03/2026)
Brands: JESTA
Wishlist
Compare
รายละเอียดสินค้า
แท็บเพิ่มเติม

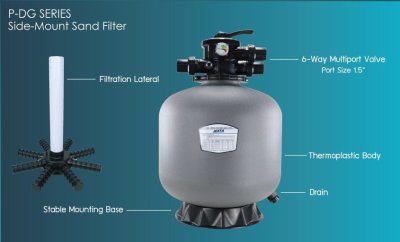

P-DG Thermo Plastic Top Mount Sand Filter
The P-DG Series sand filter is a high-efficiency swimming pool filtration system manufactured in China. Produced under rigorous quality control and precise thermoplastic molding, it offers outstanding structural strength and exceptional resistance to chemical corrosion.
Applications
- All types and sizes of swimming pools
- Swimming pools with integrated spa systems
- Residential swimming pools
- Fish ponds, fountains, and garden pools
Product Features
- Made of high-density polyethylene, ensuring strength and durability suitable for various weather conditions.
- Resistant to chemical corrosion and UV rays, while also being environmentally friendly.
- Easy-to-use multiport valve; simply rotate the handle to select different operating functions.
- The filter clamp is designed to rotate 360° for easy and convenient installation and operation.
- Capable of withstanding water temperatures up to 43°C.
Technical Information
P-DG Series Top-Mount Sand Filter Buying Guide
| Model | Valve | Max Pressure | Filter Area | Flow Rate | Weight | Sand Volume |
|---|---|---|---|---|---|---|
| SL-P-DG400 | 1.5" | 2.5 bar | 1.40 ft² | 6.50 m³/h | 5.0 kg | 34 kg |
| SL-P-DG450 | 1.5" | 2.5 bar | 1.72 ft² | 8.00 m³/h | 6.5 kg | 50 kg |
| SL-P-DG500 | 1.5" | 2.5 bar | 2.47 ft² | 11.50 m³/h | 9.2 kg | 80 kg |
| SL-P-DG650 | 1.5" | 2.5 bar | 3.44 ft² | 16.00 m³/h | 12.1 kg | 160 kg |
| SL-P-DG700 | 1.5" | 2.5 bar | 4.30 ft² | 20.50 m³/h | 17.0 kg | 220 kg |
Dimensions
| Model | Description | Pipe Size | Dimension (mm.) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |||
| FT-SL-P-DG400 | 16 P-DG Series Sand Filter | 1.5 | 410 | 770 | 319 | 510 | 565 | 620 | 75 |
| FT-SL-P-DG450 | 18 P-DG Series Sand Filter | 1.5 | 450 | 830 | 390 | 570 | 625 | 680 | 75 |
| FT-SL-P-DG500 | 21 P-DG Series Sand Filter | 1.5 | 535 | 870 | 390 | 610 | 665 | 720 | 75 |
| FT-SL-P-DG650 | 25 P-DG Series Sand Filter | 1.5 | 635 | 970 | 565 | 710 | 765 | 820 | 95 |
| FT-SL-P-DG700 | 25 P-DG Series Sand Filter | 1.5 | 710 | 1040 | 565 | 780 | 835 | 890 | 95 |
