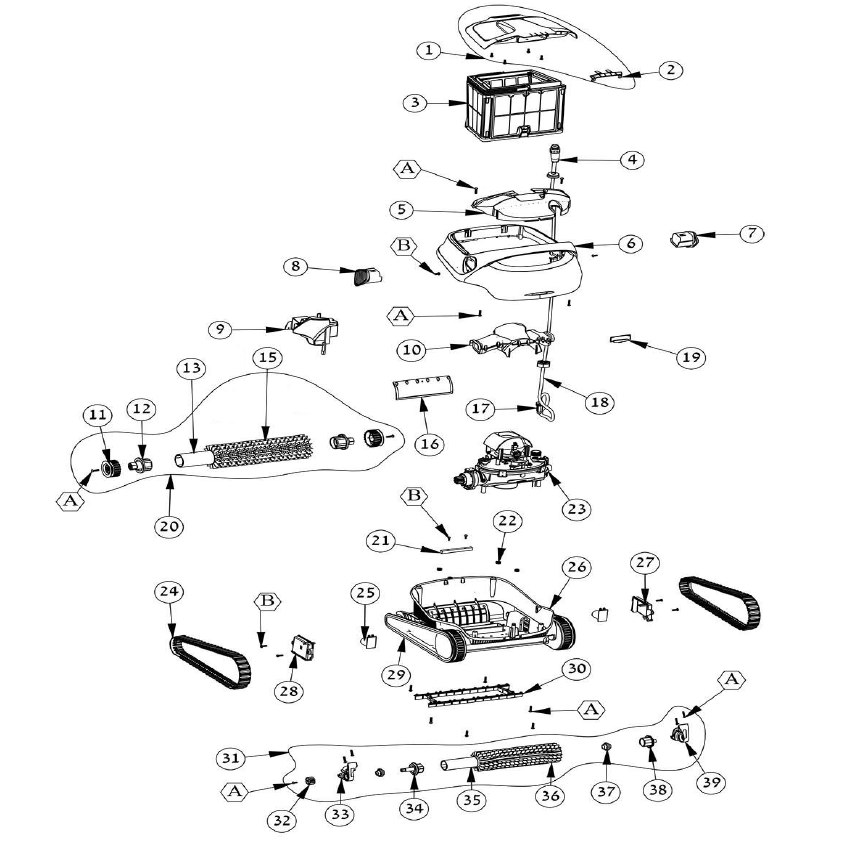

Sparepart Dolphine S200
| Code | Item No. | Item Code | Descriptions | Model | Price 2026 (In. VAT) |
Website |
|---|---|---|---|---|---|---|
| 22310402210 | 1 | 99952112-ASSY | Rear Lid S300i White Assy | S200 o | 17,303.00 | 10,382.00 |
| 22310404035 | 1.01 | 9983204 | Cork For DC in PWS S300i | S200 o | 2,077.00 | 1,247.00 |
| 22310402205 | 1.01 | 99956032-AU-15 | Power Supply Basic 230V | S200 o | 20,764.00 | 12,459.00 |
| 22310403965 | 1.03 | 5898415LF | Power Cable (ALL) Black | S200 o | 1,732.00 | 1,040.00 |
| 22310403970 | 01.03-A | 5898426LF | Cable - Power Supply Thailand | S200 o | 3,296.00 | 1,978.00 |
| 22310404050 | 01.03-B | 5898419LF | Cable - Power Supply SA | S200 o | 3,296.00 | 1,978.00 |
| 22310400490 | 01.03OD | 5898423LF-ASSY | Cable - Power Supply AU (Old) | S200 o | 3,296.00 | 1,978.00 |
| 22310402225 | 1.11 | 9991458-ASSY | Filter Cartridge Assy M2/M2i | S200 | 15,574.00 | 9,345.00 |
| 22310402235 | 40919 | 9983108 | Filter Handle S300i | S200 | 678.00 | 407.00 |
| 22310402240 | 41285 | 9983109 | Filter Handle Latch s300i | S200 | 150.00 | 90.00 |
| 22310402245 | 41650 | 3917029 | Filter Handle Spring S300i | S200 | 874.00 | 525.00 |
| 22310402255 | 42015 | 9983110 | Filter Top S300i | S200 | 1,039.00 | 624.00 |
| 22310402250 | 42380 | 6350150 | Non Return Valve (M2/M2i Large) | S200 | 528.00 | 317.00 |
| 22310402290 | 44207 | 9983107 | Filter Door | S200 | 1,567.00 | 941.00 |
| 22310402285 | 44572 | 9983105 | Filter Bottom S300i + OM | S200 | 2,425.00 | 1,455.00 |
| 22310401380 | 01.11.D | 3379410-A | Screw WN1412 A2 KA40X10 | S200 | 132.00 | 80.00 |
| 22310402215 | 2 | 99831362 | Filter Cover Latch Blue (S150-S300i) | S200 o | 2,770.00 | 1,662.00 |
| 22310403980 | 3 | 8883989 | FILTERS S200 - CATALOG KIT | S200 o | - | - |
| 22310402295 | 3.11 | 9991463-ASSY | Filter Spring Filter Kit M2/M2i | S200 o | 8,653.00 | 5,192.00 |
| 22310402280 | 3.15 | 9991467-ASSY | Filter Cartridge Kit M2/M2i | S200 o | 10,382.00 | 6,230.00 |
| 22310402470 | 3.5 | 9995387-EX | Motor Unit M2 Ex* | S200 | 38,065.00 | 22,839.00 |
| 22310400840 | 03.50.03.A | 3354020-A | Screw KA40X20 (Retail) | S200 | 183.00 | 110.00 |
| 22310400715 | 03.50.03.B | 3379616-A | Screw KA50X16 (Retail) | S200 | 183.00 | 110.00 |
| 22310402460 | 03.50.03.C | 3101308-A | SCREW M3X8 DIN965A-A2 TUF | S200 | 297.00 | 179.00 |
| 22310402385 | 03.50.52 | 9991735 | WATER ADJUSTER TUBE M2/M2i ASSY | S200 | 1,221.00 | 733.00 |
| 22310402390 | 03.50.53 | 9983146 | Impeller Tube* | S200 | 874.00 | 525.00 |
| 22310404381 | 03.50.54 | 9983356 | PIN SERVO M2 iO | S200 | 183.00 | 110.00 |
| 22310404382 | 03.50.55 | 9983363 | SPACER FOR SERVO MOVEMENT | S200 | 528.00 | 317.00 |
| 22310400195 | 03.50.56 | 5588902 | Impeller Motor Holder 2 | S200 | 1,485.00 | 891.00 |
| 22310400015 | 03.50.57 | 9995266 | Impeller + Screw DC Black | S200 | 1,221.00 | 733.00 |
| 22310402405 | 03.50.58 | 9991734-ASSY | COVER FOR MU S300+SERVO+CARD ASSY | S200 | 20,764.00 | 12,459.00 |
| 22310402410 | 03.50.59 | 3861644 | O-Ring 164*4 N70 | S200 | 693.00 | 416.00 |
| 22310404375 | 03.50.60 | 9983406 | PCB Holder S300 | S200 | 117.00 | 71.00 |
| 22310400230 | 03.50.61 | 3862503 | Seal Oring 25X3 I.M | S200 | 99.00 | 60.00 |
| 22310400235 | 03.50.62 | 5583323 | SEAL ORING 32X3 | S200 | 165.00 | 99.00 |
| 22310400225 | 03.50.63 | 5890051LF | Cable Loom MBU 2010 | S200 | 6,231.00 | 3,739.00 |
| 22310402420 | 03.50.64 | 9991211-ASSY | Impeller Motor S300 Assy | S200 | 13,843.00 | 8,306.00 |
| 22310402425 | 03.50.65 | 9983180 | Front Clips For MBU S300 | S200 | 150.00 | 90.00 |
| 22310400260 | 03.50.66 | 4850010 | Dessicating Bag | S200 | 330.00 | 198.00 |
| 22310402430 | 03.50.68 | 9983166 | Cable Clips For MBU | S200 | 150.00 | 90.00 |
| 22310402435 | 03.50.69 | 9991210-ASSY | Drive Motor S300 Assy | S200 | 20,764.00 | 12,459.00 |
| 22310402440 | 03.50.70 | 9983142 | Gear Z12 For Drive Motor | S200 | 150.00 | 90.00 |
| 22310402445 | 03.50.71 | 3862474 | Oring 47x4mm | S200 | 150.00 | 90.00 |
| 22310402450 | 03.50.72 | 9983140 | Clip For MBU | S200 | 150.00 | 90.00 |
| 22310402585 | 03.50.73 | 9991736 | Box for MU S300i + LED Assy | S200 | 3,809.00 | 2,286.00 |
| 22310402325 | 3.51 | 9991730 | WATER TUBE M2/M2i ASSY | S200 | 2,077.00 | 1,247.00 |
| 22310400835 | 03.A | 3379450-A | Screw KA40X12 | S200 o | 183.00 | 110.00 |
| 22310402300 | 5 | 9983175 | TOP LID S300i | S200 o | 2,770.00 | 1,662.00 |
| 22310402525 | 5.74 | 9995545-ASSY | Active Brush S300i Blue Assy | S200 | 14,023.00 | 8,414.00 |
| 22310400715 | 05.74.74.A | 3379616-A | Screw KA50X16 (Retail) | S200 | 183.00 | 110.00 |
| 22310402530 | 05.74.75 | 9983123 | Active Brush Gear M2/M2i | S200 | 264.00 | 159.00 |
| 22310402540 | 05.74.77 | 9983119 | Active Brush Adaptor (M2/M2i R) | S200 | 183.00 | 110.00 |
| 22310402545 | 05.74.78 | 9983088 | Wheel Tube for Active Brush S300 | S200 | 1,221.00 | 733.00 |
| 22310402550 | 05.74.79 | 99831221 | Brush Blue For Active Brush | S200 | 2,260.00 | 1,356.00 |
| 22310402555 | 05.74.80 | 9983113 | Bushing - Active Brush S300 | S200 | 150.00 | 90.00 |
| 22310402560 | 05.74.81 | 9983118 | Active Brush Adaptor (M2/M2i L) | S200 | 183.00 | 110.00 |
| 22310402370 | 5.86 | 99955381-ASSY | Wheel Assy PVC Blue | S200 | 7,269.00 | 4,362.00 |
| 22310400715 | 05.86.86.A | 3379616-A | Screw KA50X16 (Retail) | S200 | 183.00 | 110.00 |
| 22310402330 | 05.86.87 | 9983112 | Bearing: Wheel M2/M2i | S200 | 693.00 | 416.00 |
| 22310402335 | 05.86.89 | 9983120 | Adaptor For Wheel Bearing M2/M2i | S200 | 264.00 | 159.00 |
| 22310403405 | 05.86.90 | 9983115 | Bushing - Brush 3 | S200 | 183.00 | 110.00 |
| 22310402305 | 6 | 99952102-ASSY | Outer Casing S300i | S200 o | 4,154.00 | 2,493.00 |
| 22310402360 | 7 | 99958907-DIY | Cable Diag 18m SWV DIY (M2) | S200 | 32,875.00 | 19,725.00 |
| 22310402310 | 7 | 99831731 | Grill Left S300i Blue | S200 o | 2,770.00 | 1,662.00 |
| 22310402350 | 7.11 | 9991271 | Retrofit For Cable Con 2015 | S200 | 1,386.00 | 832.00 |
| 22310403985 | 7.111 | 9983126 | GROMET REF SMALL | S200 | 264.00 | 159.00 |
| 22310400110 | 7.112 | 9995090 | Cable Float Assy | S200 | 1,912.00 | 1,148.00 |
| 22310404045 | 7.113 | 99958814-DIY | Cable Diag 1.2m SVW DIY (2015 Line) | S200 | - | - |
| 22310400105 | 7.115 | 5000009 | Amphenol Plug (*) | S200 | 3,296.00 | 1,978.00 |
| 22310402315 | 8 | 99831741 | Grill Right S300i Blue | S200 o | 2,110.00 | 1,266.00 |
| 22310402320 | 9 | 9991733 | Float + Housing for S300i | S200 o | 1,386.00 | 832.00 |
| 22310400435 | 13 | 6101911 | Wheel Tube Diag Basic | S200 o | 2,077.00 | 1,247.00 |
| 22310404040 | 15 | 6101311 | Brush PVC Diag Blue (M2/M2i) | S200 o | 2,077.00 | 1,247.00 |
| 22310402345 | 16 | 9983102 | RAPID DRAIN FLAP | S200 o | 1,122.00 | 674.00 |
| 22310400125 | 17.02 | 1811404 | Cable Connector | S200 o | 348.00 | 209.00 |
| 22310402365 | 19 | 9983172 | LED Lens M2i | S200 o | 381.00 | 229.00 |
| 22310402375 | 21 | 3726284 | REAR WEIGHT FOR S300i | S200 o | 2,605.00 | 1,563.00 |
| 22310402380 | 22 | 3917022 | Spring for Filter | S200 o | 348.00 | 209.00 |
| 22310404010 | 23 | 8882041 | MOTOR UNIT CATALOG KIT S200 | S200 o | - | - |
| 22310400155 | 23.A | 3379440-A | Screw KA50X12 A2 WN1412 (Retail) | S200 o | 132.00 | 80.00 |
| 22310402475 | 24 | 99831521 | Track: M1/M2 Blue | S200 o | 2,951.00 | 1,771.00 |
| 22310402480 | 25 | 9991731-ASSY | Bypass Assy M2/M2i | S200 o | 348.00 | 209.00 |
| 22310402485 | 26 | 9983100 | Chassis M2/M2i | S200 o | 11,256.00 | 6,754.00 |
| 22310402490 | 27 | 9983168 | Bypass Cover M2/M2i L | S200 o | 348.00 | 209.00 |
| 22310402495 | 28 | 9983169 | Bypass Cover S300i R | S200 o | 348.00 | 209.00 |
| 22310404075 | 29 | 8881205-GR | S300 DRIVE SYS CAT. KIT | S200 o | - | - |
| 22310402520 | 30 | 9991732 | VACUUM STRIPS KIT OF 10 | S200 o | 1,039.00 | 624.00 |
| 22310402535 | 33 | 9983116 | Active Brush Holder M2/M2i L | S200 o | 495.00 | 297.00 |
| 22310402565 | 39 | 9983117 | Active Brush Holder M2/M2i R | S200 o | 495.00 | 297.00 |
| 22310402230 | 3.01 | 9991457-ASSY | Filter Spring Filter Assy M2 | S200 o | 20,764.00 | 12,459.00 |
| 22310402220 | 3.14 | 9983106 | Filter Basket Rough M2i | S200 o | 11,949.00 | 7,170.00 |
| 22310400120 | 17.01 | 9985048 | Cable Conn Three Pin | S200 o | 1,912.00 | 1,148.00 |
| 22310402395 | 23.03 | 9983147 | PIN FOR SERVO | S200 o | 249.00 | 150.00 |
| 22310402400 | 23.04 | 9983149 | SPACER FOR SERVO PIN | S200 o | 51.00 | 31.00 |
| 22310402415 | 23.09 | 9983151 | PCB Holder S300 | S200 o | 150.00 | 90.00 |
| 22310402455 | 23.21 | 9983138 | Motor Unit Casing S100 | S200 o | 1,386.00 | 832.00 |
| 22310402500 | 29.01 | 9983111 | Front Wheel Grey | S200 o | 693.00 | 416.00 |
| 22310402505 | 29.03 | 9983114 | Bushing - Wheel 2 | S200 o | 183.00 | 110.00 |
| 22310402510 | 29.04 | 9983121 | Wheel Disk 2 | S200 o | 150.00 | 90.00 |
| 22310402515 | 29.05 | 99831031 | Side Panel (Grey) | S200 o | 8,998.00 | 5,399.00 |
