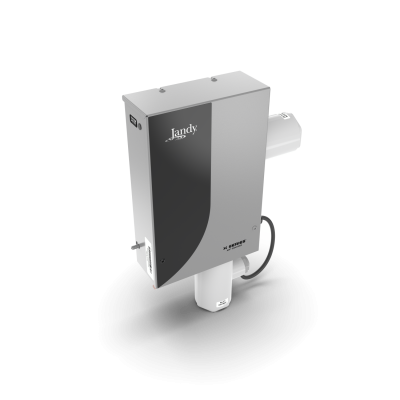

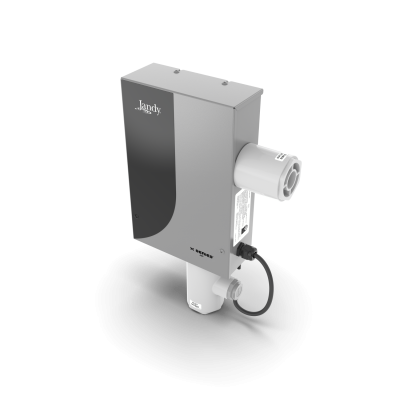

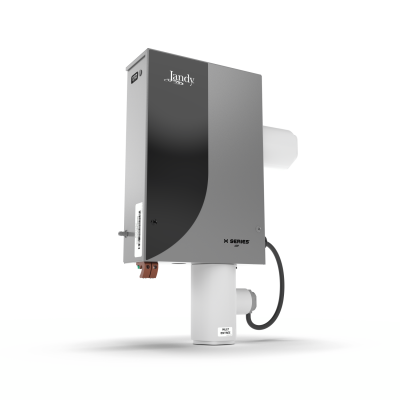

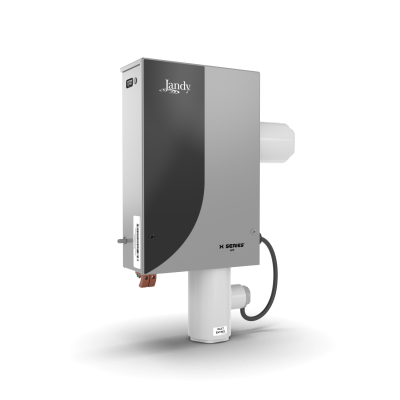

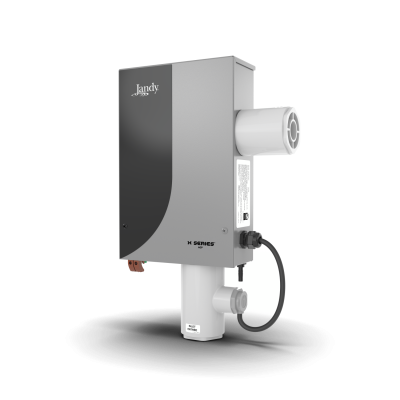

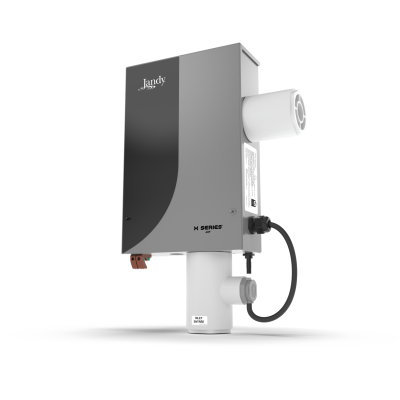

กระบอกดักก๊าซโอโซน แบบ Offline สำหรับ JANDY X-SERIES 200

SKU : JMDVOFF

ขายแล้ว 0 ชิ้น

ยังไม่มีรีวิว

จำนวน

คำอธิบายสินค้าแบบย่อ

กระบอกดักก๊าซโอโซน แบบ Offline สำหรับ JANDY X-SERIES 200

(Update 25/04/2026)

แบรนด์: Jandy
รายการโปรด
Product description
Download
แท็บเพิ่มเติม

Jandy X OFFLINE AOP

The science has spoken! Pool water is simply cleaner when you add AOP.


Chlorine can keep pool water clean, but if you want a crystal, clear pristine kind of clean —adding AOP is your solution. Combining powerful UV-C and Ozone technologies, the Jandy® X-series AOP Off-line System offers superior oxidation to rid your pool of contaminants that chlorine alone can’t — delivering pool water that’s cleaner, clearer and healthier to swim in than when you use chlorine alone.


Designed to work on contact for near instantaneous results, our unsurpassed X-Series AOP system eradicates what’s not wanted in the water as it recirculates — allowing there to be more free chlorine available to handle what’s left, which significantly reduces how much chlorine is needed.


The first to put the incredible cleaning power of AOP to use in swimming pools, Jandy X- Series line of AOP systems are powered by DEL® technology.



X-Series AOP Off-line Systems Features

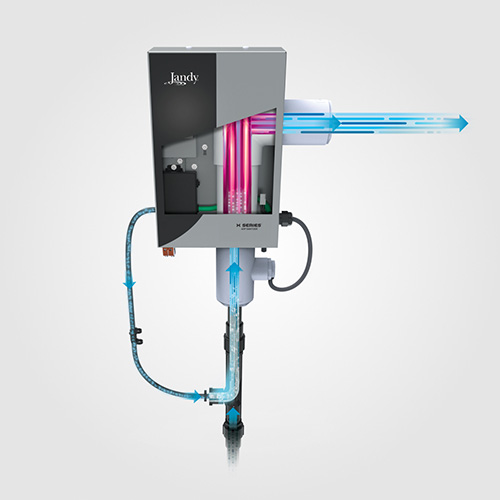

Water Doesn’t Get Cleaner Than This

By combining Ozone + UV-C technologies Jandy® AOP systems create hydroxyl radicals — a super powerful cleaning agent that can eradicate contaminants in milliseconds before they even reach your pool — so you wind up with the cleanest pool water possible!

A Better Experience for Everyone

Say goodbye to red eyes, damaged hair, itchy skin and that all too familiar “pool smell.” These effects are caused by chloramines, which form when chlorine reacts with organic substances like sweat and bodily oils. AOP destroys chloramines — leaving you with water that's cleaner, more comfortable, and doesn't smell.



Versatile Off-line AOP System

Simplifies Pool Maintenance

When you need less chlorine, there’s less to do on scene. AOP provides consistent water chemistry so you don’t need to spend your valuable time balancing water levels to prevent algae blooms.

Versatile Installation

The off-line design of this AOP system allows for greater flexibility so each setup can be tailored for the pool’s unique configuration during installation

SPECIFICATIONS

FeatureJandy® AOP X200Jandy® AOP X350Jandy® AOP X500
Part NumberJAOPX200JAOPX350JAOPX500
Mains Supply110/240 VAC 50/60Hz, 1φ, 0.9 A110/240 VAC 50/60Hz, 1φ, 1.1 A240 VAC 60Hz, 1φt, 0.6 A
Wattage99 W (110V), 216 W (240V)121 W (110V), 264 W (240V)144 W (240V)
PlumbingInlet & Outlet 2” PVC unionsInlet & Outlet 2” PVC unionsInlet & Outlet 2” PVC unions
Flow Rate (NSF certified)30 GPM40 GPM50 GPM
Max Pool Volume25,000 gal40,000 gal50,000 gal
MountingFloor (Florida Building Code Wind Force Category 1 Compliant)
EnclosureCSA/NEMA 3 | Indoor/Outdoor Installation
Dimensions24.3”H x 12.5”W x 13.4”D24.3”H x 12.5”W x 13.4”D28”H x 17”W x 10.5”D
Weight (Shipping)54 lb.54 lb.55 lb.
UV-C LampLow pressure / 16 000 h / High output UV-C
UV Wavelength254 nm254 nm254 nm
Ozone Cells1 Corona discharge cell2 Corona discharge cells3 Corona discharge cells
Ozone Output200 mg/h350 mg/h500 mg/h
CertificationsNSF/ANSI/CAN Standard 50 supplemental sanitizer - CCS#16534 | UL listed US & Canada
MDV Unit*MDV XL In-Line (P/N=JMDVIN)

*MDV (Mixing Degas Vessel) is required for indoor & covered pools, optional for others

Dimensions
