SF SERIES LADDERS REPLACEMENT PARTS
Parts of SF Series Ladder Models: NSF & SFF

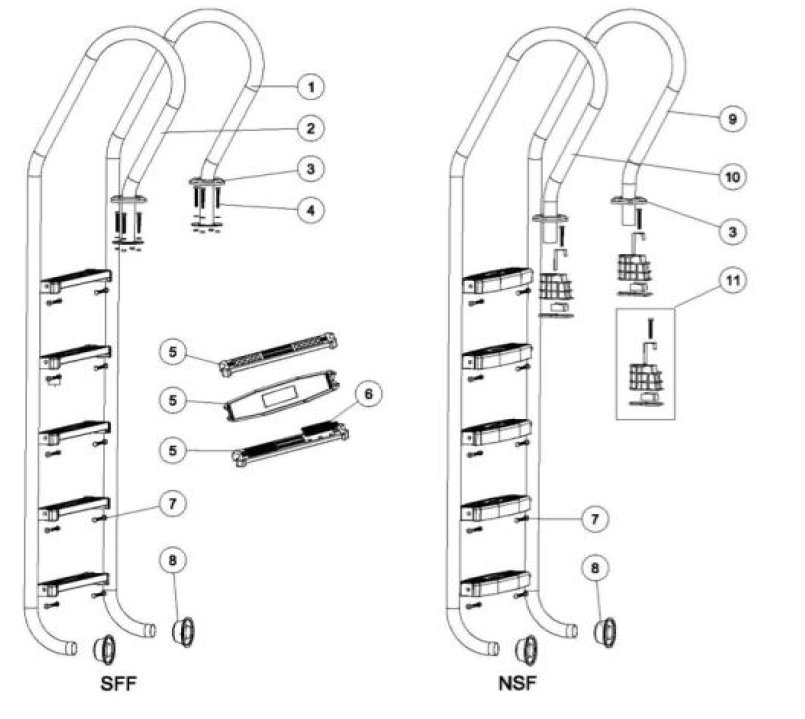

| Key NO. | Codes | Part NO. | Descriptions | Qty (Pieces) |
Price 2026 (Inc. VAT) |
Website |
|---|---|---|---|---|---|---|
| 1 | 21830510220 | 03016093 | Ladders Left Hand-Side (AISI304) for SFF215 (Flange) | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | |
| 21830510225 | 03016094 | Ladders Left Hand-Side (AISI304) for SFF315 (Flange) | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510230 | 03016095 | Ladders Left Hand-Side (AISI304) for SFF415 (Flange) | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510235 | 03016096 | Ladders Left Hand-Side (AISI304) for SFF515 (Flange) | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510240 | 03016212 | Ladders Left Hand-Side (AISI316) for SFF215 (Flange) | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510245 | 03016213 | Ladders Left Hand-Side (AISI316) for SFF315 (Flange) | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510250 | 03016214 | Ladders Left Hand-Side (AISI316) for SFF415 (Flange) | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510255 | 03016215 | Ladders Left Hand-Side (AISI316) for SFF515 (Flange) | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 2 | 21830510260 | 03016097 | Ladders Right Hand-Side (AISI304) for SFF215 (Flange) | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | |
| 21830510265 | 03016098 | Ladders Right Hand-Side (AISI304) for SFF215 (Flange) | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510270 | 03016099 | Ladders Right Hand-Side (AISI304) for SFF415 (Flange) | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510275 | 03016136 | Ladders Right Hand-Side (AISI304) for SFF515 (Flange) | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510280 | 03016216 | Ladders Right Hand-Side (AISI316) for SFF215 (Flange) | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510285 | 03016217 | Ladders Right Hand-Side (AISI316) for SFF215 (Flange) | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510290 | 03016218 | Ladders Right Hand-Side (AISI316) for SFF415 (Flange) | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510295 | 03016219 | Ladders Right Hand-Side (AISI316) for SFF515 (Flange) | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 3 | 21830510085 | 03016046 | Cover | 2 | 1,155.00 | 693.00 |
| 4 | 21830510090 | 89071801 | M8*50 Screw with Washer & Nut for Flange | 8 | 495.00 | 297.00 |
| 5* | 21830510095 | 89070102 | Ladders Stainless Steel Step (AISI304) | * | 4,202.00 | 2,522.00 |
| 21830510100 | 89070105 | Ladders Stainless Steel Step (AISI316) | * | 5,175.00 | 3,105.00 | |
| 21830510105 | 01051173 | Ladders Plastic Step | * | 2,293.00 | 1,376.00 | |
| 21830510300 | 89070107 | Ladders Stainless Steel Step (AISI316) with Anti-Slippery Pad | * | 5,703.00 | 3,422.00 | |
| 21830510110 | 89070108 | Ladders Stainless Steel Step (AISI304) with Anti-Slippery Pad | * | 4,319.00 | 2,592.00 | |
| 6 | 21830510115 | 02141006 | Anti-Slippery Pad | * | 264.00 | 159.00 |
| 7 | 21830510120 | 112000069 | M8*35 Screw with Washer for Step (AISI304) | * | 264.00 | 159.00 |
| 21830510125 | 112010126 | M8*35 Screw with Washer for Step (AISI316) | * | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 8 | 21830510130 | 89070104 | Cap | 2 | 495.00 | 297.00 |
| 9 | 21830510305 | 03016077 | Ladders Left Hand-Side (AISI304) for SF215 | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | |
| 21830510310 | 03016078 | Ladders Left Hand-Side (AISI304) for SF315 | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510315 | 03016079 | Ladders Left Hand-Side (AISI304) for SF415 | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510320 | 03016080 | Ladders Left Hand-Side (AISI304) for SF515 | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510325 | 03016180 | Ladders Left Hand-Side (AISI316) for SF215 | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510330 | 03016181 | Ladders Left Hand-Side (AISI316) for SF315 | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510335 | 03016182 | Ladders Left Hand-Side (AISI316) for SF415 | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510340 | 03016183 | Ladders Left Hand-Side (AISI316) for SF515 | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 10 | 21830510345 | 03016081 | Ladders Right Hand-Side (AISI304) for SF215 | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | |
| 21830510350 | 03016082 | Ladders Right Hand-Side (AISI304) for SF315 | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510355 | 03016083 | Ladders Right Hand-Side (AISI304) for SF415 | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510360 | 03016084 | Ladders Right Hand-Side (AISI304) for SF515 | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510365 | 03016184 | Ladders Right Hand-Side (AISI316) for SF215 | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510370 | 03016185 | Ladders Right Hand-Side (AISI316) for SF315 | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510375 | 03016186 | Ladders Right Hand-Side (AISI316) for SF415 | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 21830510380 | 03016187 | Ladders Right Hand-Side (AISI316) for SF515 | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | ||
| 11 | 21830510215 | 89070101 | Anchor Type Fittings (Concrete Pool) | 2 | 1,336.00 | 802.00 |
| 10 | 21830510380 | 03016187 | Ladders Right Hand-Side (AISI316) for SF515 | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | |
| 11 | 21830510215 | 89070101 | Anchor Type Fittings (Concrete Pool) | 2 | 1,336.00 | 802.00 |
Notes:
- NSF&SFF 215-S need 2pcs of Ladder Stainless Steel step and 4pcs of M8*35 Screw with Washer for Step (AISI304 or AISI316)
- NSF&SFF 315-S need 3pcs of Ladder Stainless Steel step and 6pcs of M8*35 Screw with Washer for Step (AISI304 or AISI316)
- NSF&SFF 415-S need 4pcs of Ladder Stainless Steel step and 8pcs of M8*35 Screw with Washer for Step (AISI304 or AISI316)
- NSF&SFF 515-S need 5pcs of Ladder Stainless Steel step and 10pcs of M8*35 Screw with Washer for Step (AISI304 or AISI316)
- NSF&SFF 215-SR need 2pcs of Ladder Stainless Steel Step with Anti-Slippery Pad and 4pcs of Anti-Slippery Pad and 4pcs of M8*35 Screw with Washer for Step (AISI304 or AISI316)
- NSF&SFF 315-SR need 3pcs of Ladder Stainless Steel Step with Anti-Slippery Pad and 6pcs of Anti-Slippery Pad and 6pcs of M8*35 Screw with Washer for Step (AISI304 or AISI316)
- NSF&SFF 415-SR need 4pcs of Ladder Stainless Steel Step with Anti-Slippery Pad and 8pcs of Anti-Slippery Pad and 8pcs of M8*35 Screw with Washer for Step (AISI304 or AISI316)
- NSF&SFF 515-SR need 5pcs of Ladder Stainless Steel Step with Anti-Slippery Pad and 10pcs of Anti-Slippery Pad and 10pcs of M8*35 Screw with Washer for Step (AISI304 or AISI316)
- NSF&SFF 215-P need 2pcs of Ladder Plastic Step and 4pcs of M8*35 Screw with Washer for Step (AISI304 or AISI316)
- NSF&SFF 315-P need 3pcs of Ladder Plastic Step and 6pcs of M8*35 Screw with Washer for Step (AISI304 or AISI316)
- NSF&SFF 415-P need 4pcs of Ladder Plastic Step and 8pcs of M8*35 Screw with Washer for Step (AISI304 or AISI316)
- NSF&SFF 515-P need 5pcs of Ladder Plastic Step and 10pcs of M8*35 Screw with Washer for Step (AISI304 or AISI316)
