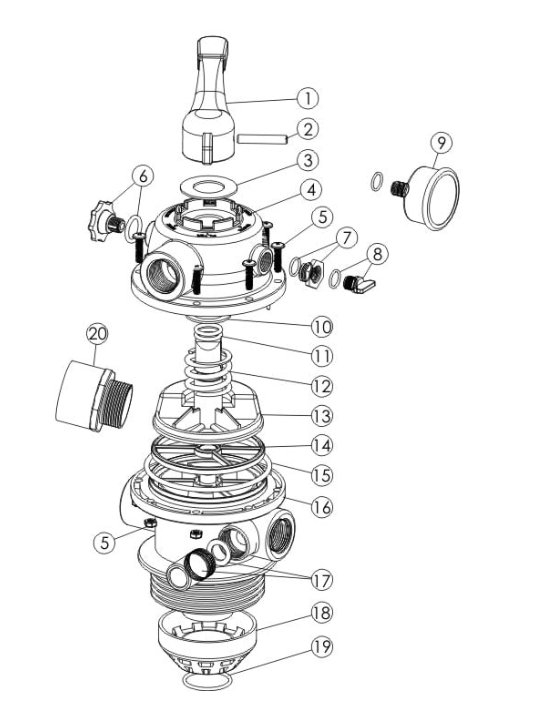

| KEY NO. | CODES | PART NO. | DESCRIPTIONS | PIECE (S) REQUIRED | Price 2026 (In. VAT) |
Website |
|---|---|---|---|---|---|---|
| 1 | 20650510505 | 01013042 | Handle | 1 | 264.00 | 159.00 |
| 2 | 20650510510 | 03018010 | Pin for Handle | 1 | 495.00 | 297.00 |
| 3 | 20650510045 | 01181001 | Washer for Handle | 1 | 150.00 | 90.00 |
| 4 | 20650510515 | 01270002 | 1.5" High-Pressure Valve Cover | 1 | 1,221.00 | 733.00 |
| 5 | 20650510050 | 89281203 | M6 x 25 Screw with Nut for Camber Lid | 8 | 264.00 | 159.00 |
| 6 | 20650511090 | 89281202 | 1" High-Pressure Valve Air Release Valve with O-Ring | 1 | 150.00 | 90.00 |
| 7 | 20320511305 | E190109 | Connector for Pressure Gauge/Stopper | 1 | 150.00 | 90.00 |
| 8 | 20650510180 | 89021307 | Drain Plug With O-Ring | 1 | 264.00 | 159.00 |
| 9 | 20710511695 | 06011031 | S/S Pressure Gauge with O-ring (100Psi) | 1 | 1,534.00 | 921.00 |
| 10 | 20650510085 | 01181002 | Washer for Spring | 1 | 150.00 | 90.00 |
| 11 | 20650510535 | 02010001 | O-Ring for Rotor | 2 | 150.00 | 90.00 |
| 12 | 20650510215 | 03014014 | Spring for Valve | 1 | 2,489.00 | 1,494.00 |
| 13 | 20650510540 | 01021005 | Rotor | 1 | 777.00 | 467.00 |
| 14 | 20650510545 | 02011012 | Spider Gasket | 1 | 579.00 | 348.00 |
| 15 | 20650510550 | 02011144 | O-Ring for 1" High-Pressure Valve Body | 1 | 264.00 | 159.00 |
| 16 | 20650510555 | 01020008 | 1" High-Pressure Valve Body Assembly | 1 | 2,671.00 | 1,603.00 |
| 17 | 20320510245 | 89280104 | Sight Glass with O-Ring | 1 | 264.00 | 159.00 |
| 18 | 20650510560 | 01013043 | Diffuser | 1 | 264.00 | 159.00 |
| 19 | 20650510565 | 02011016 | O-Ring for Diffuser | 1 | 150.00 | 90.00 |
| 20 | 20650510575 | 01150001 | 1" Union(A) | 3 | 495.00 | 297.00 |
| 20 | 20650510580 | 01150050 | 1" Union(E) | 3 | 495.00 | 297.00 |
