SparePart MFV Filter
Emaux SAND FILTER
อะไหล่กังกรองทราย MFV TOP MOUNT EMAUX

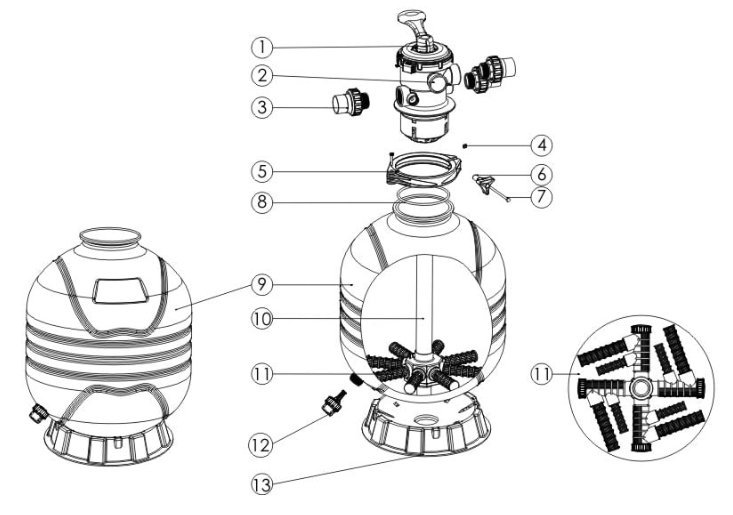

Parts of Models: MFV17/ 20/ 24/ 27A/ 27 31A/ 31/ 35
| KEY NO. | CODES | PART NO. | DESCRIPTIONS | PIECE (S) REQUIRED | Price 2024 | Website | |
| 1 | 088281505 | 6 Way 1.5" Top Mount Valve (Valve Only) (Black) | 1 | ติดต่อฝ่ายขาย | |||
| 1 | 088281506 | 6 Way 2" Top Mount Valve (Valve Only) - Clamp Type (Black) | 1 | ติดต่อฝ่ายขาย | |||
| 2 | 20320511020 |  |
06011029 | Maximum 40PSI Indication, Stainless Steel Casing | 1 | 1,633.00 | 980.00 |
| 2 | 20320510010 |  |
01111048 | Connector for Pressure Gauge/Stopper | 1 | 84.00 | 51.00 |
| 3 | 20651610025 |  |
089280102B | 1.5" union set (Black) with O-ring | 3 | 907.00 | 545.00 |
| 3 | 20651610035 | 89280102W | 1.5" union set (White) with O-ring | 3 | 907.00 | 545.00 | |
| 3 | 20651610030 | 89280103 | 2.0" Union (Black/ White Colour) | 3 | 973.00 | 584.00 | |
| 3 | 20651610040 | 89280103W | 2" union set (White) with O-ring | 3 | 973.00 | 584.00 | |
| 4 | 20320510015 |  |
03021035 | M6 Nut | 1 | 249.00 | 150.00 |
| 5 | 20320510020 |  |
89012512 | Clamp Kit | 1 | 2,359.00 | 1,416.00 |
| 6 | 20320510025 | 01111101 | Star-Shaped Nut | 1 | 249.00 | 150.00 | |
| 7 | 20320510030 | 112000017 | M6×110mm Screws | 1 | 462.00 | 278.00 | |
| 8 | 20320510035 |  |
02010007 | O-Ring | 1 | 462.00 | 278.00 |
| 9 | 20320510040 | 89012501 | Filter Tank for MFV17 | 1 | ติดต่อฝ่ายขาย | ||
| 9 | 20320510045 | 89012502 | Filter Tank for MFV20 | 1 | ติดต่อฝ่ายขาย | ||
| 9 | 20320510050 | 89012503 | Filter Tank for MFV24 | 1 | ติดต่อฝ่ายขาย | ||
| 9 | 20320510055 | 89012504 | Filter Tank for MFV27/MFV27A | 1 | ติดต่อฝ่ายขาย | ||
| 9 | 20320510060 | 89012505 | Filter Tank for MFV31/ MFV31A | 1 | ติดต่อฝ่ายขาย | ||
| 9 | 20320510065 | 89012506 | Filter Tank for MFV35 | 1 | ติดต่อฝ่ายขาย | ||
| 10 | 20320510070 | 89012507 | Lateral Assembly with Center Pipe for MFV17 | 1 | 1,138.00 | 683.00 | |
| 10 | 20320510075 | 89012508 | Lateral Assembly with Center Pipe for MFV20 | 1 | 1,386.00 | 832.00 | |
| 10 | 20320510080 | 89012509 | Lateral Assembly with Center Pipe for MFV24 | 1 | 1,386.00 | 832.00 | |
| 10 | 20320510085 | 89012510 | Lateral Assembly with Center Pipe for MFV27A | 1 | 1,633.00 | 980.00 | |
| 10 | 20320510090 | 89012513 | Lateral Assembly with Center Pipe for MFV27 | 1 | 2,819.00 | 1,692.00 | |
| 10 | 20320510095 | 89012511 | Lateral Assembly with Center Pipe for MFV31A | 1 | 1,813.00 | 1,088.00 | |
| 10 | 20320510100 | 89012514 | Lateral Assembly with Center Pipe for MFV31 | 1 | 2,029.00 | 1,218.00 | |
| 10 | 20320510105 | 89012515 | Lateral Assembly with Center Pipe for MFV35 | 1 | 2,359.00 | 1,416.00 | |
| 11* | 20320510110 | 01172007 | Laterals (115mm) | * | 249.00 | 150.00 | |
| 11* | 20320510115 | 01172008 | Laterals (126mm) | * | 249.00 | 150.00 | |
| 11* | 20320510120 | 01172010 | Laterals (185mm) | * | 414.00 | 249.00 | |
| 12 | 20320510125 | 89011601 | Water Drain Set | 1 | 693.00 | 416.00 | |
| 13 | 20320510130 | 01111059 | 16-21inch Filter Base | 1 | 1,386.00 | 832.00 | |
| 13 | 20320510135 | 01111062 | 21-28inch Filter Base | 1 | 3,265.00 | 1,959.00 | |
| 13 | 20320510140 | 01112037 | 31-35inch Filter Base | 1 | 3,989.00 | 2,394.00 | |
