JESTMAX Pump Spare Parts

Identify each spare part from the exploded view and match it with the Ref No. and Part No. to help ensure the correct JESTMAX pump replacement part is selected.

PART DIAGRAM

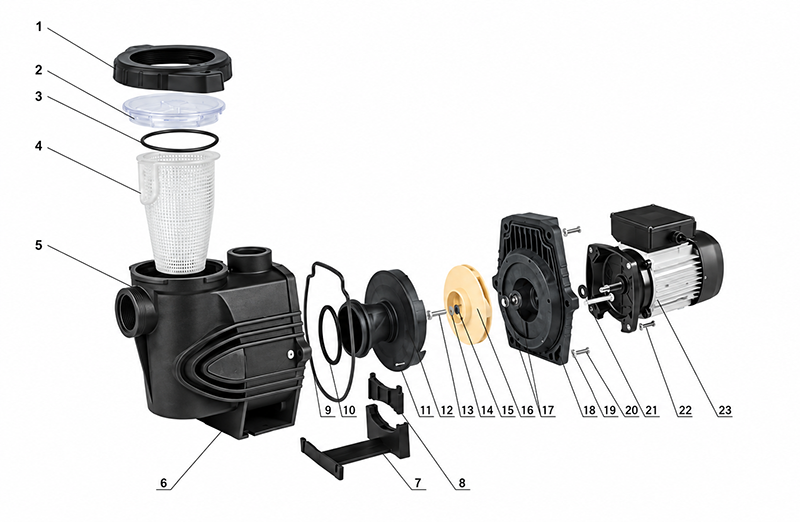

JESTMAX Pump Exploded View

Match the diagram number with the Ref No.
JESTMAX Pump Spare Parts Exploded View
JESTMAX Pump Spare Parts Diagram
PARTS LIST

JESTMAX Pump Spare Parts List

Please check the Ref No., Part No., and motor horsepower before placing an order.

Prices include VAT
Ref No. Part No. Description Price
(VAT Included)
Website Price
1 PS-JT-GLP60001 STRAINER COVER NUT FOR JESTMAX 269 162
2 PS-JT-GLP60002 STRAINER COVER FOR JESTMAX 269 162
3 PS-JT-GLP60003 STRAINER COVER O-RING FOR JESTMAX 113 68
4 PS-JT-GLP60004 STRAINER BASKET FOR JESTMAX 113 68
5 PS-JT-GLP60005 PUMP BODY FOR JESTMAX 2,462 1,478
6 PS-JT-GLP60006 NUT FOR JESTMAX 113 68
7+8 PS-JT-GLP60078 PUMP SUPPORT FOR JESTMAX 449 270
9 PS-JT-GLP60009 PUMP BODY RUBBER FOR JESTMAX 159 96
10 PS-JT-GLP60010 DIFFUSER O-RING FOR JESTMAX 69 42
11 PS-JT-GLP60011 DIFFUSER SCREW FOR JESTMAX 113 68
12 PS-JT-GLP60121 DIFFUSER FOR JESTMAX 0.5–1.5 HP 258 155
12 PS-JT-GLP60122 DIFFUSER FOR JESTMAX 2 HP 258 155
12 PS-JT-GLP60123 DIFFUSER FOR JESTMAX 3 HP 258 155
13+14+15 PS-JT-GLP601345 IMPELLER SCREW SET FOR JESTMAX 113 68
16 PS-JT-GLP60161 IMPELLER FOR JESTMAX 0.5 HP 293 176
16 PS-JT-GLP60162 IMPELLER FOR JESTMAX 0.75 HP 293 176
16 PS-JT-GLP60163 IMPELLER FOR JESTMAX 1.0 HP 293 176
HOW TO SELECT

How to Identify the Correct Spare Part

1
Find the Part in the Diagram
Locate the required component in the JESTMAX pump exploded view and note its reference number.
2
Match the Ref No.
Compare the number shown in the diagram with the Ref No. listed in the spare parts table.
3
Verify the Part No.
Use the Part No. as the primary reference when confirming the replacement part before ordering.
4
Check the Motor HP
Some diffusers and impellers vary according to the pump motor horsepower, so always confirm the HP rating.
Important Note Prices and product details are subject to change. Please confirm the Part No., pump model, and motor horsepower before ordering. This is particularly important for diffusers and impellers, which may differ depending on the HP rating.
NEED HELP?

Not Sure Which JESTMAX Spare Part You Need?

Send us a photo of your pump, the nameplate, or the Ref No. Our team can help verify the correct spare part before you place your order.
