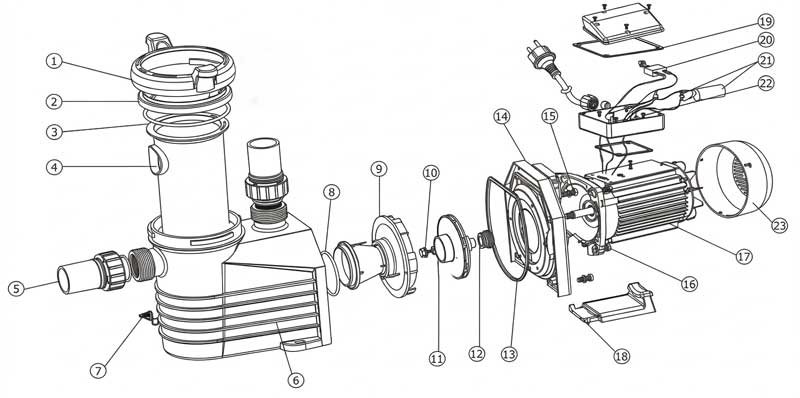

ET SERIES PUMP REPLACEMENT PARTS

Parts of ET Series Pump Models: ET075/ ET100/ ET150/ ET200/ ET300

KEY NO. CODES PART NO. DESCRIPTIONS PIECE(S)
REQUIRED		 Price 2026
(Inc. VAT)		 Website
1 20710512485 4204010050 Nut For Lid 1 1,336.00 802.00
2 20710512490 4203810050 Transparent Lid 1 1,155.00 693.00
3 20710512495 111010057 O-Ring For Lid 1 495.00 297.00
4 20710512500 4202310050 Basket 1 1,155.00 693.00
5 20710512505 E023801 1.5" Union 2 858.00 515.00
6 20710512510 4200510050 Pump body 1 10,217.00 6,131.00
7 20650510180 89021307 Drain Plug With O-ring 2 264.00 159.00
8 20710512520 111002592 O-Ring For Diffuser 1 264.00 159.00
9 20710512525 420219954 Diffuser 1 1,155.00 693.00
10 20710510045 89020719 Screw for impeller with O-ring 1 264.00 159.00
11 20710512605 420360894 / 01311057 Impeller For 075 (50Hz) 1 1,912.00 1,148.00
11 20710512605 420360894 / 01311057 Impeller For 100 (60Hz) 1 1,912.00 1,148.00
11 20710512610 420360822 / 01311047 Impeller For 100 (50Hz) 1 1,912.00 1,148.00
11 20710512610 420360822 / 01311047 Impeller For 200 (60Hz) 1 1,912.00 1,148.00
11 20710512615 420360887 / 01400103 Impeller For 150 (50Hz) 1 1,912.00 1,148.00
11 20710512615 420360887 / 01400103 Impeller For 300 (60Hz) 1 1,912.00 1,148.00
11 20710512620 420360823 / 01400100 Impeller For 200 (50Hz) 1 1,912.00 1,148.00
11 20710512625 420360824 / 01400101 Impeller For 300 (50Hz) 1 1,912.00 1,148.00
11 20710512630 420360899 / 01311059 Impeller For 075 (60Hz) 1 - -
11 20710512635 420360896 / 01311058 Impeller For 150 (60Hz) 1 - -
12 20710510071 E020001 3/4" Mechanical seal 1 1,912.00 1,148.00
13 20710512545 111990019 O-Ring for Flange 1 495.00 297.00
14 20710512550 4202010050 Flange 1 3,428.00 2,057.00
15 20710512455 112000069 M8*35 Screw 6 264.00 159.00
16 20710512560 112000065 M8*25 Screw 4 264.00 159.00
17 20710512640 42059051223 / 04020116 Motor YYD-8022E For 075 220V 50Hz/60Hz 1 - -
17 20710512645 42059051224 / 04020117 Motor YYD-8032E For 100 220V 50Hz/60Hz 1 - -
17 20710512650 42059051225 / 04020118 Motor YYD-8042E For 150 220V 50Hz/60Hz 1 - -
17 20710512655 42059051226 / 04020119 Motor YYD-8052E For 200 220V 50Hz 1 - -
17 20710512660 42059051227 / 04020120 Motor YYD-8062E For 300 220V 50Hz 1 - -
17 20710512665 42059054710 / 04021123 Motor YYD-8052EE For 200 220V 60Hz 1 - -
17 20710512670 42059054711 / 04021124 Motor YYD-8062EE For 300 220V 60Hz 1 - -
18 20710512575 4201210050 Base 1 1,336.00 802.00
18 20710512675 111990020 Arch Cushion for Base 1 1,336.00 802.00
19 20710512680 111022379 / 02011073 Arch Cushion For Cable Box 1 612.00 368.00
20 20710512685 106301473 / 04015015 Overload Switch PE77-8A/250VAC for 150 1 495.00 297.00
20 20710512690 106301468 / 04015012 Overload Switch PE77-10A/250VAC for 200 1 495.00 297.00
20 20710512695 106301469 / 04016037 Overload Switch PE77-13A/250VAC for 300 1 495.00 297.00
21 20710512700 106241424 / 04016012 Capacitor for SS/SD/SQ/SP/ST100-120 & SC075 & SPH/ET075Pump 1 2,029.00 1,218.00
21 20710512705 106241427 / 04016014 Capacitor for SB/SR10,SB15 & SC100-150 & SPH/ET100-150 Pump 1 1,485.00 891.00
21 20710512710 106241430 / 04016015 Capacitor for SB/SR20 & SC/EPH200 & SPH/ET200 Pump 1 1,567.00 941.00
21 20710512715 106241432 / 04016016 Capacitor for SB/SR30 EPH300,EPH400 & SPH/ET300 Pump 1 1,171.00 703.00
22 20710512720 E022111 / 89022112 Cable Box 1 2,293.00 1,376.00
23 20710512725 420170904 / 01321031 Fan Cover 1 1,336.00 802.00
