ASTRALPOOL Heating
Eco-Elyo 20
CODE: 76662
* ราคาสินค้ารวมภาษีมูลค่าเพิ่ม 7% แล้ว ราคาอาจเปลี่ยนแปลงโดยไม่แจ้งล่วงหน้า กรุณาติดต่อฝ่ายขายเพื่อยืนยันราคาและสต๊อกสินค้าล่าสุด

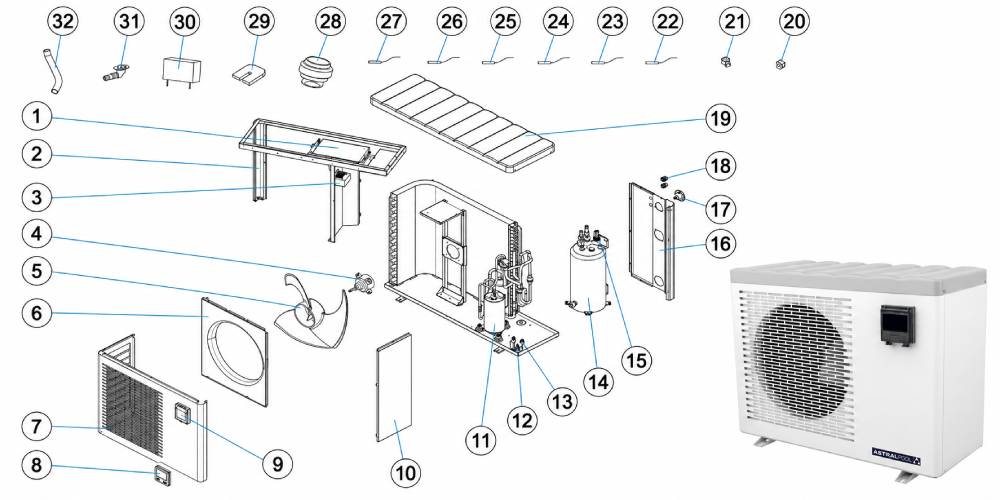

| No. | รหัสสินค้า (Code) | รายละเอียดสินค้า (Description) | แพ็ค (Pack) | ราคารวม VAT | ราคาเว็บไซต์ |
|---|---|---|---|---|---|
| 1 | 75339R0021B |
PLAQUE BASE PCB | 1 | ฿50,348 | ฿28,699 |
| 2 | 76662R0004 |
BACK SUPPORT COLUMN | 1 | ฿3,436 | ฿1,959 |
| 3 | 75339R0016 |
REACTOR | 1 | ฿7,797 | ฿4,445 |
| 4 | 75340R0015 |
FAN MOTOR | 1 | ฿24,447 | ฿13,935 |
| 4 | 75336R0018 |
FAN MOTOR | 1 | ฿15,858 | ฿9,040 |
| 4 | 75336R0019 |
FAN MOTOR + HOLDER | 1 | ฿19,558 | ฿11,149 |
| 5 | 75340R0014 |
FAN BLADE | 1 | ฿7,797 | ฿4,445 |
| 6 | 76662R0005 |
WIND GUIDE | 1 | ฿8,986 | ฿5,123 |
| 7 | 76662R0003 |
FRONT PANEL | 1 | ฿17,840 | ฿10,169 |
| 8 | 75311R0012 |
WATERPROOF CONTROLLER BOX | 1 | ฿1,454 | ฿829 |
| 9 | 75311R0037D |
CONTROLLER | 1 | ฿8,986 | ฿5,123 |
| 10 | 75311R0077 |
RIGHT SIDE PANEL | 1 | ฿6,740 | ฿3,842 |
| 11 | 75340R0009 |
COMPRESSORE | 1 | ฿46,251 | ฿26,364 |
| 12 | 75336R0007 |
LOW PRESSURE SWITCH | 1 | ฿1,586 | ฿905 |
| 13 | 75336R0008 |
HIGH PRESSURE SWITCH | 1 | ฿1,454 | ฿829 |
| 14 | 75340R0006 |
TITANIUM HEAT EXCHANGER | 1 | ฿49,423 | ฿28,172 |
| 15 | 75336R0005 |
WATER FLOW SWITCH | 1 | ฿1,983 | ฿1,131 |
| 16 | 76662R0002 |
BACK PANEL | 1 | ฿8,854 | ฿5,047 |
| 17 | 75311R0003 |
PRESSURE GAUGE | 1 | ฿2,908 | ฿1,658 |
| 18 | 75311R0002 |
CABLE GLANDS | 1 | ฿397 | ฿227 |
| 19 | 76662R0001 |
ABS TOP PANEL | 1 | ฿8,326 | ฿4,746 |
| 20 | 75336R0023 |
4-WAY VALVE COIL | 1 | ฿1,322 | ฿754 |
| 21 | 75336R0025 |
EEV COIL | 1 | ฿2,908 | ฿1,658 |
| 22 | 75336R0037 |
GAS SUCTION TEMPERATURE SENSOR | 1 | ฿793 | ฿453 |
| 23 | 75336R0026 |
WATER OUTLET TEMPERATURE SENSOR | 1 | ฿1,454 | ฿829 |
| 24 | 75336R0028 |
WATER INLET TEMPERATURE SENSOR | 1 | ฿1,454 | ฿829 |
| 25 | 75336R0029 |
AMBIENT TEMPERATURE SENSOR | 1 | ฿1,454 | ฿829 |
| 26 | 75336R0030 |
WATER INLET TEMPERATURE EVAPORATOR | 1 | ฿1,983 | ฿1,131 |
| 27 | 75336R0031 |
GAS DISCHARGE TEMPERATURE SENSOR | 1 | ฿1,983 | ฿1,131 |
| 28 | 75311R0032 |
WATER CONNECTION SETS | 1 | ฿1,454 | ฿829 |
| 29 | 75311R0035 |
ANTI-VIBRATION FEET | 1 | ฿133 | ฿76 |
| 30 | 75340R0036 |
WINTER COVER | 1 | ฿5,815 | ฿3,315 |
| 31 | 75311R0034 |
WATER NOZZLE | 1 | ฿397 | ฿227 |
| 32 | 75311R0033 |
DRAIN HOSE | 1 | ฿529 | ฿302 |
