DOLPHIN ROBOT CLEANER REPLACEMENT PARTS
Dolphin Wave 200
| CODE | Item No. | Item Code | รายละเอียด | Model | Price 2026 | Website |
|---|---|---|---|---|---|---|
| 22310401345 | 01 | 9995412-ASSY | RCU Wave 200/300 | Wave200 | 24,225.00 | 14,535.00 |
| 22310401360 | 02 | 9991039-ASSY | MMI Display Cover - Assy | Wave200 | 2,425.00 | 1,455.00 |
| 22310401355 | 03 | 9995993-ASSY | Tool: Wave Man Machine Interface | Wave200 | 240,498.00 | 144,299.00 |
| 22310403920 | 03.03 | 99958904 | Cable Wave 35 | Wave200 o | 60,558.00 | 36,335.00 |
| 22310401350 | 04 | 9980490 | Tool: Wave - Mmi Omega | Wave200 | 693.00 | 416.00 |

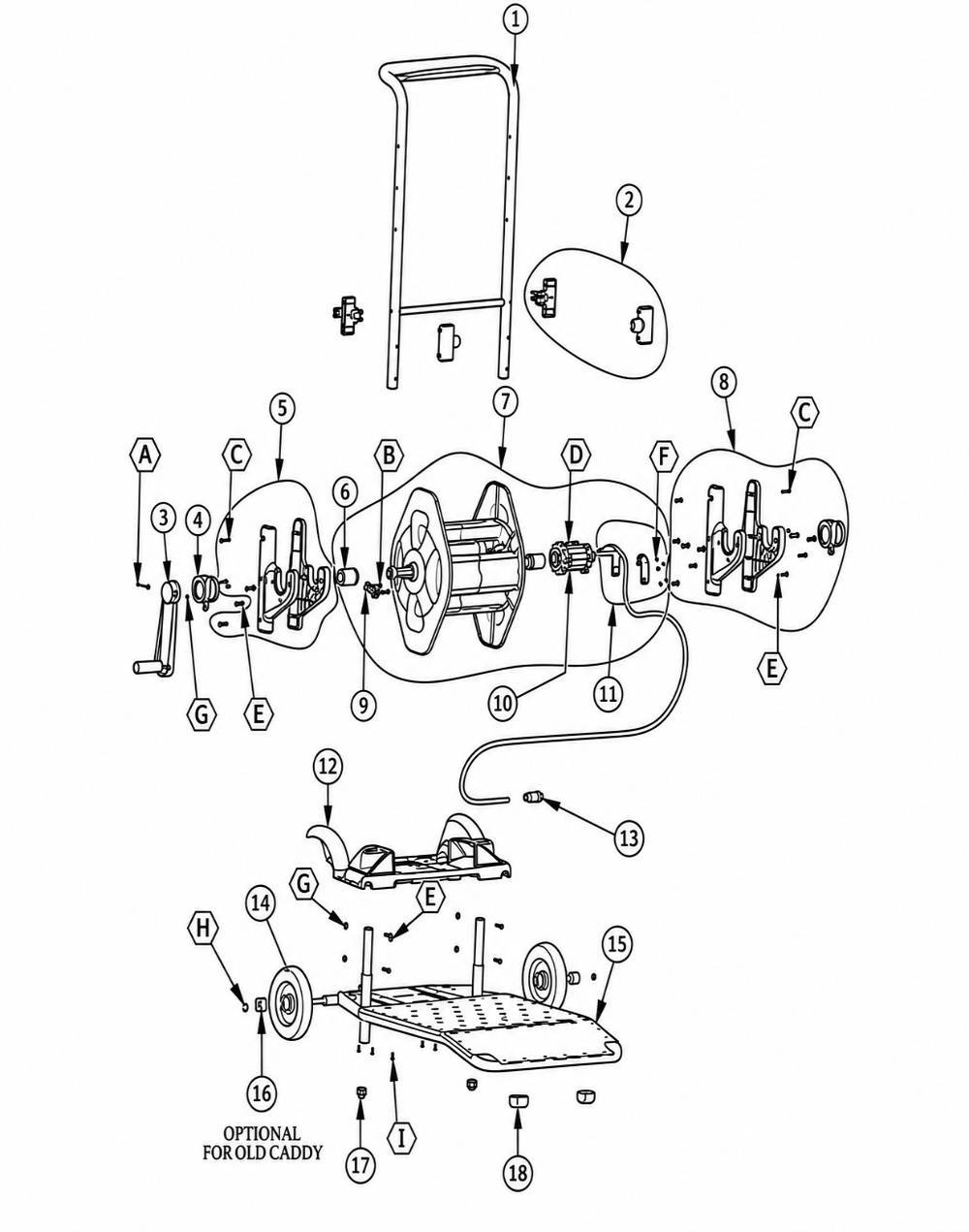

| 22310401600 | 05 | 9996088-ASSY | Caddy (Wave 200/300) | Wave200 | 337,388.00 | 202,433.00 |
| 22310404419 | 05.01 | 7100018 | Caddy Sub (Wave) Handle | Wave200 | 171,290.00 | 102,774.00 |
| 22310401610 | 05.02 | 9991726 | Caddy Sub (Wave) Cable Holder | Wave200 | 2,605.00 | 1,563.00 |
| 22310401615 | 05.03 | 9991721-ASSY | Caddy Sub (Wave) Arm Reel | Wave200 | 17,303.00 | 10,382.00 |
| 22310403635 | 05.04 | 9982426 | Valve - Non Return Wave 200 | Wave200 o | 1,386.00 | 832.00 |
| 22310401620 | 05.04 | 9980324 | Caddy Sub (Wave) Bearing Holder | Wave200 | 4,334.00 | 2,601.00 |
| 22310401625 | 05.05 | 9991724 | Caddy Sub (Wave) Reel Holder R | Wave200 | 5,720.00 | 3,432.00 |
| 22310401630 | 05.06 | 9980328 | Caddy Sub (Wave) Reel Bearing | Wave200 | 2,951.00 | 1,771.00 |
| 22310401635 | 05.07 | 9991722-ASSY | Caddy Sub (Wave) Cable Reel+Swivel | Wave200 | 64,018.00 | 38,411.00 |
| 22310401640 | 05.08 | 9991725 | Caddy Sub (Wave) Reel Holder L | Wave200 | 4,682.00 | 2,810.00 |
| 22310401645 | 05.09 | 9980337 | Caddy Sub (Wave) Cable Fixer | Wave200 | 2,951.00 | 1,771.00 |
| 22310401650 | 05.10 | 9991723-ASSY | Caddy Sub (Wave) Swivel Assy | Wave200 | 57,097.00 | 34,259.00 |
| 22310401655 | 05.11 | 9991727 | Caddy Sub (Wave) Cable Bend Assy | Wave200 | 1,221.00 | 733.00 |
| 22310401660 | 05.12 | 9980320 | Caddy Sub (Wave) Wheel Cover | Wave200 | 10,382.00 | 6,230.00 |
| 22310401665 | 05.13 | 5000017 | Amphenol Plug | Wave200 | 3,296.00 | 1,978.00 |
| 22310401670 | 05.14 | 4901641-ASSY | Caddy Sub (Wave) Wheel+Bearings | Wave200 | 11,256.00 | 6,754.00 |
| 22310401675 | 05.15 | 7100019 | Caddy Sub (Wave) Tray | Wave200 | 141,876.00 | 85,126.00 |
| 22310401130 | 05.16 | 9993072 | Bearing + Holder Assy IGUS Wave | Wave200 | 2,077.00 | 1,247.00 |
| 22310401680 | 05.17 | 3390515 | Caddy Sub (Wave) Caddy Legs Cork | Wave200 | 183.00 | 110.00 |
| 22310401685 | 05.18 | 3967020 | Caddy Sub (Wave) Front Rubber Pad | Wave200 | 528.00 | 317.00 |
| 22310401690 | 05.A | 3300560 | SCREW M5X60 DIN7985A A2 FORM H | Wave200 | 528.00 | 317.00 |
| 22310400715 | 05.B | 3379616-A | Screw KA50X16 (Retail) | Wave200 | 183.00 | 110.00 |
| 22310401695 | 05.C | 3300550 | SCREW M5X50 DIN7985A A2 FORM H | Wave200 | 183.00 | 110.00 |
| 22310400835 | 05.D | 3379450-A | Screw KA40X12 | Wave200 | 183.00 | 110.00 |
| 22310400835 | 05.D | 3379450-A | Screw KA40X12 | Wave200 | 183.00 | 110.00 |
| 22310401700 | 05.E | 3100540 | SCREW M5X40 A2 DIN7985 | Wave200 | 183.00 | 110.00 |
| 22310400835 | 05.F | 3379450-A | Screw KA40X12 | Wave200 | 183.00 | 110.00 |
| 22310400835 | 05.F | 3379450-A | Screw KA40X12 | Wave200 | 183.00 | 110.00 |
| 22310401440 | 05.G | 3509350 | Nut M5 A2 DIN 985 | Wave200 | 183.00 | 110.00 |
| 22310401705 | 05.H | 3516471 | Wave - Circlip 10mm | Wave200 | 693.00 | 416.00 |
| 22310401460 | 05.I | 3300516 | Screw M5 x 16 DIN 7985A A2 Form H | Wave200 | 183.00 | 110.00 |
| 22310403870 | 06 | 99956026AU-ASSY | Power Supply Wave 200/300 AU (2017) | Wave200 | 256,069.00 | 153,642.00 |
| 22310401480 | 06.01 | 5102010 | Switch Cover Flange for Wave PS | Wave200 o | 2,605.00 | 1,563.00 |
| 22310404418 | 06.01 | 5102002 | Switch Cover Kit (For PSU) | Wave200 | 2,605.00 | 1,563.00 |
| 22310403875 | 06.03 | 9991189LF | Cable Loom PSU AC Wave 200 | Wave200 | 3,461.00 | 2,077.00 |
| 22310401520 | 06.04 | 9991138LF | Wave PS Cable | Wave200 o | 3,461.00 | 2,077.00 |
| 22310404420 | 06.04 | 9991200LF | Cable - Power Supply Wave AU | Wave200 | 2,951.00 | 1,771.00 |
| 22310401500 | 06.05 | 5890034LF | Nut for MMI Socket | Wave200 | 348.00 | 209.00 |
| 22310401490 | 06.06 | 9986009 | Wave PS Casing | Wave200 | 19,033.00 | 11,420.00 |
| 22310401575 | 06.07 | 5020016 | Wave PS Amphenol Socket | Wave200 | 3,116.00 | 1,870.00 |
| 22310401570 | 06.08 | 5020017 | Wave PS Amphenol Socket Cover | Wave200 | 1,567.00 | 941.00 |
| 22310401515 | 06.09 | 3860221 | Oring for PS Cable 22-1.5 | Wave200 | 183.00 | 110.00 |
| 22310403880 | 06.10 | 9991185LF | Cable - Power Supply MMI Connector | Wave200 | 3,461.00 | 2,077.00 |
| 22310400785 | 06.11 | 3390223 | Cover plug for frame | Wave200 | 183.00 | 110.00 |
| 22310401510 | 06.12 | 9991729 | Amphenol Kit for Wave PS | Wave200 | 4,334.00 | 2,601.00 |
| 22310403885 | 06.13 | 9991176LF | Cable Loom PSU DC Wave 200 | Wave200 | 3,461.00 | 2,077.00 |
| 22310403890 | 06.14 | 5645030-ASSY | Power Pack for PSU (PSU Wave 200 & 300) | Wave200 | 152,258.00 | 91,355.00 |
| 22310403895 | 06.15 | 9991177LF | Cable Loom PSU DC In Wave 200 | Wave200 | 3,461.00 | 2,077.00 |
| 22310403900 | 06.16 | 9982472 | PS Bottom Plate | Wave200 | 13,843.00 | 8,306.00 |
| 22310403905 | 06.17 | 99951089-ASSY | Electronic Card PWS Wave 200 | Wave200 | 13,497.00 | 8,099.00 |
| 22310401380 | 06.A | 3379410-A | Screw WN1412 A2 KA40X10 | Wave200 | 132.00 | 80.00 |
| 22310400495 | 06.B | 3379212 | Screw KA30X12 | Wave200 | 132.00 | 80.00 |
| 22310400155 | 06.D | 3379440-A | Screw KA50X12 A2 WN1412 (Retail) | Wave200 | 132.00 | 80.00 |

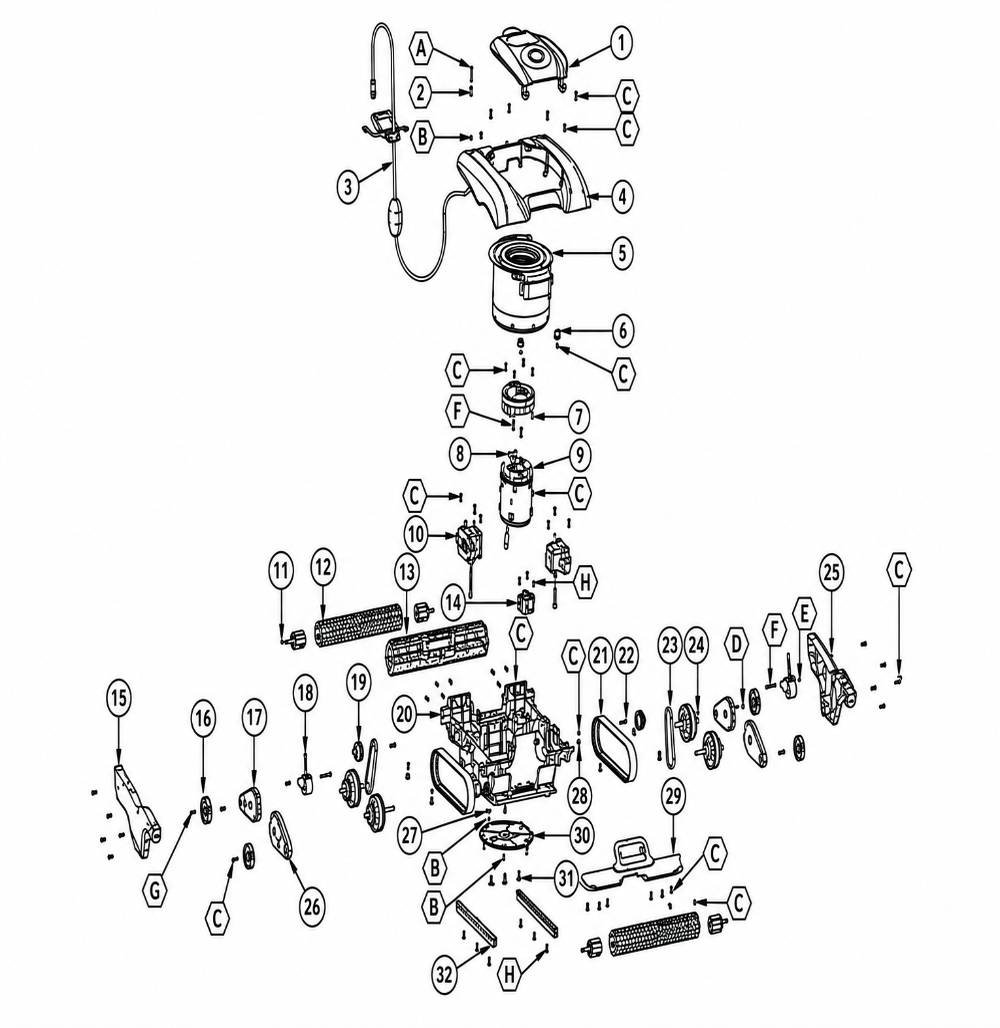

| — | 07 | — | WAVE 200 - CATALOG KIT | Wave200 | - | - |
| 22310403910 | 07 | 8881062 | WAVE 200 - CATALOG KIT | Wave200 o | - | - |
| 22310403525 | 07.01 | 9991323-ASSY | Filter Cover Wave 200 Assy | Wave200 | 25,954.00 | 15,573.00 |
| 22310403530 | 07.01.01 | 9982412 | Wave Hood | Wave200 | 4,499.00 | 2,700.00 |
| 22310403550 | 07.01.05 | 9991331-ASSY | Button Cover Assy Wave 200 | Wave200 | 7,795.00 | 4,677.00 |
| 22310403555 | 07.01.06 | 9982481 | Hood Axle R | Wave200 | 348.00 | 209.00 |
| 22310403560 | 07.01.07 | 9982482 | Hood Axle L | Wave200 | 348.00 | 209.00 |
| 22310403565 | 07.01.08 | 9991325-ASSY | Jet Wave 200 Assy | Wave200 | 3,116.00 | 1,870.00 |
| 22310403570 | 07.01.09 | 3860023 | Jet Wave 200 Seal | Wave200 | 1,039.00 | 624.00 |
| 22310403575 | 07.01.10 | 9982449 | WATER RELEASE FLAP | Wave200 | 348.00 | 209.00 |
| 22310403580 | 07.01.11 | 9982419 | Filter Cover plus Over Mould | Wave200 | 4,847.00 | 2,909.00 |
| 22310400715 | 07.01.A | 3379616-A | Screw KA50X16 (Retail) | Wave200 | 183.00 | 110.00 |
| 22310400715 | 07.01.A | 3379616-A | Screw KA50X16 (Retail) | Wave200 | 183.00 | 110.00 |
| 22310400835 | 07.01.B | 3379450-A | Screw KA40X12 | Wave200 | 183.00 | 110.00 |
| 22310400715 | 07.01.C | 3379616-A | Screw KA50X16 (Retail) | Wave200 | 183.00 | 110.00 |
| 22310400715 | 07.01.C | 3379616-A | Screw KA50X16 (Retail) | Wave200 | 183.00 | 110.00 |
| 22310401440 | 07.01.D | 3509350 | Nut M5 A2 DIN 985 | Wave200 | 183.00 | 110.00 |
| 22310401400 | 07.01.E | 3105580 | Screw M5x80 A2 | Wave200 | 528.00 | 317.00 |
| 22310403590 | 07.02 | 2735610 | SPACER 5.2X10X30 | Wave200 | 528.00 | 317.00 |

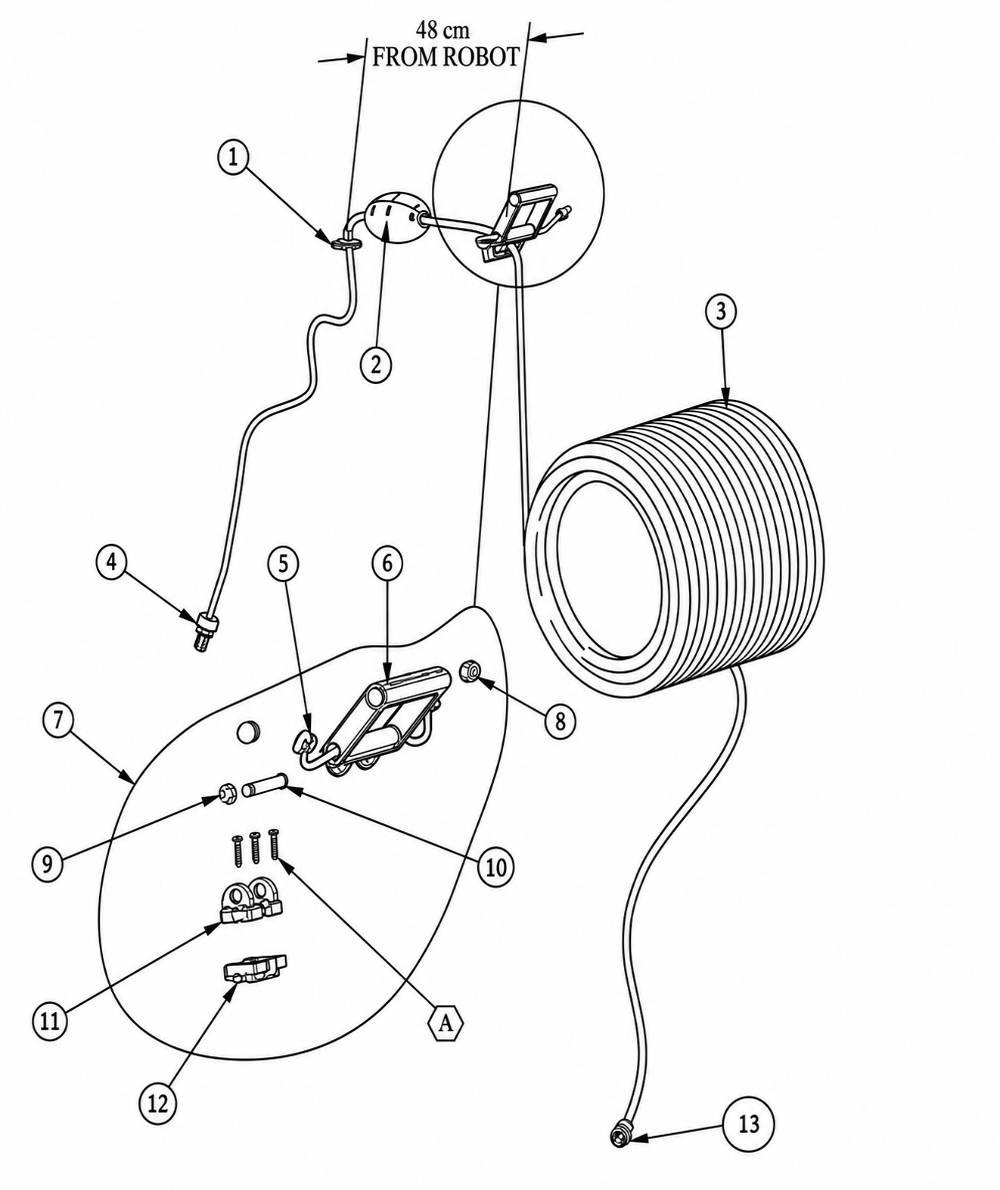

| 22310403915 | 07.03 | 8881064 | WAVE 200 CABLE - CATALOG KIT | Wave200 o | - | - |
| — | 07.03 | — | WAVE 200 CABLE AU - CATALOG KIT | Wave200 | - | - |
| 22310403595 | 07.03.01 | 9980403 | Wave Grommet | Wave200 | 1,039.00 | 624.00 |
| 22310401235 | 07.03.02 | 99960087 | Float Assy For Cable Wave | Wave200 | 2,425.00 | 1,455.00 |
| 22310400995 | 07.03.04 | 9991274 | Retrofit For Cable Con Wave | Wave200 | 2,077.00 | 1,247.00 |
| 22310400120 | 07.03.04.01 | 9985048 | Cable Conn Three Pin | Wave200 | 1,912.00 | 1,148.00 |
| 22310401000 | 07.03.04.02 | 1811602LF | Cable Crimp 10-12# 20A 3.18 | Wave200 | 1,039.00 | 624.00 |
| 22310400125 | 07.03.04.02A | 1811404 | Cable Connector | Wave200 | 348.00 | 209.00 |
| 22310400220 | 07.03.04.04 | 3861002 | RK RING FOR CABLE CONN. | Wave200 | 528.00 | 317.00 |
| 22310401320 | 07.03.05 | 9991042-ASSY | NylonString + FastenRings Assy | Wave200 | 348.00 | 209.00 |
| 22310401270 | 07.03.06 | 9980394 | Wave - Cable Handle | Wave200 | 1,039.00 | 624.00 |
| 22310401330 | 07.03.07 | 9991020-ASSY | Wave - Pulling Handle Assy | Wave200 | 5,027.00 | 3,017.00 |
| 22310401265 | 07.03.09 | 3506799 | Circlip Dia.8Mm A2 | Wave200 | 693.00 | 416.00 |
| 22310401260 | 07.03.10 | 5581002 | Shaft Wave Cable Handle | Wave200 | 2,077.00 | 1,247.00 |
| 22310401250 | 07.03.11 | 9980393 | Wave - Cable Handle -Upper Part | Wave200 | 1,039.00 | 624.00 |
| 22310401255 | 07.03.12 | 9980392 | Wave - Cable Handle -Lower Part | Wave200 | 1,039.00 | 624.00 |
| 22310401665 | 07.03.13 | 5000017 | Amphenol Plug | Wave200 | 3,296.00 | 1,978.00 |
| 22310400840 | 07.03.A | 3354020-A | Screw KA40X20 (Retail) | Wave200 | 183.00 | 110.00 |
| 22310403610 | 07.04 | 9982413 | TOP BODY WAVE 200 | Wave200 | 11,949.00 | 7,170.00 |
| 22310403925 | 07.05 | 8883988 | FILTERS WAVE 200 - CATALOG KIT | Wave200 o | - | - |
| — | 07.05 | — | FILTERS WAVE 200 - CATALOG KIT | Wave200 | - | - |
| 22310403615 | 07.05.01 | 5581021 | Filter Handle Wave 200 | Wave200 | 6,180.00 | 3,708.00 |
| 22310403625 | 07.05.02 | 9991473 | Filter Cartridge Ultrafine Wave 200 | Wave200 | 51,907.00 | 31,145.00 |
| 22310403620 | 07.05.02-1 | 9991474 | Filter Cartridge Wave 100UM | Wave200 | 62,289.00 | 37,374.00 |
| 22310403630 | 07.05.03 | 9982417 | Filter Net Cyclone | Wave200 | 10,382.00 | 6,230.00 |
| 22310403645 | 07.05.06 | 9982416 | Filter Bucket Wave 200 | Wave200 | 10,382.00 | 6,230.00 |
| 22310403655 | 07.05.07 | 3860029 | Seal for Filter Wave 200 | Wave200 | 3,296.00 | 1,978.00 |
| 22310403660 | 07.05.08 | 9982474 | Canister Base | Wave200 | 2,770.00 | 1,662.00 |
| 22310400715 | 07.05.A | 3379616-A | Screw KA50X16 (Retail) | Wave200 | 183.00 | 110.00 |
| 22310400835 | 07.05.B | 3379450-A | Screw KA40X12 | Wave200 | 183.00 | 110.00 |
| 22310403665 | 07.06 | 9982457 | AXLE SUPPORT | Wave200 | 1,039.00 | 624.00 |
| 22310403670 | 07.07 | 9982442 | IMPELLER COVER W200 | Wave200 | 3,296.00 | 1,978.00 |
| 22310403675 | 07.08 | 9982485 | Impeller - Wave 200 | Wave200 | 693.00 | 416.00 |
| 22310403680 | 07.09 | 9995391-ASSY | Motor Suction Unit Wave 200 XL | Wave200 | 107,272.00 | 64,364.00 |
| 22310403685 | 07.10 | 9995390-ASSY | Motor Drive Unit Wave 200 XL | Wave200 | 38,065.00 | 22,839.00 |
| 22310403690 | 07.11 | 9982405 | Wheel Adaptor - Wave 200 | Wave200 | 15,920.00 | 9,552.00 |
| 22310403695 | 07.12 | 9982477 | Brush Wave 200 | Wave200 | 4,499.00 | 2,700.00 |
| 22310403700 | 07.13 | 9982421 | REAR BUMPER | Wave200 | 10,382.00 | 6,230.00 |
| 22310403930 | 07.14 | 9991720-ASSY | Wave Navigation Box Assy | Wave200 | 221,466.00 | 132,880.00 |
| 22310403705 | 07.15 | 9982415 | Side Panel Wave 200 R | Wave200 | 6,411.00 | 3,847.00 |
| 22310403710 | 07.16 | 9982428 | Side Brush Wave 200 | Wave200 | 1,912.00 | 1,148.00 |
| 22310403715 | 07.17 | 9991328-ASSY | Brush Arm (Wave 200) | Wave200 | 16,265.00 | 9,759.00 |
| 22310403720 | 07.17.02 | 9991333 | Gear T10/24 Wave 200 | Wave200 | 693.00 | 416.00 |
| 22310403725 | 07.17.03 | 9991332 | Gear T10/11 Wave 200 | Wave200 | 693.00 | 416.00 |
| 22310403730 | 07.17.04 | 5581410 | Drive Belt T10-410 Wave 200 | Wave200 | 3,989.00 | 2,394.00 |
| 22310403735 | 07.17.05 | 5581609 | Bearing: Adjustable Wave 200 | Wave200 | 7,450.00 | 4,470.00 |
| 22310400715 | 07.17.A | 3379616-A | Screw KA50X16 (Retail) | Wave200 | 183.00 | 110.00 |

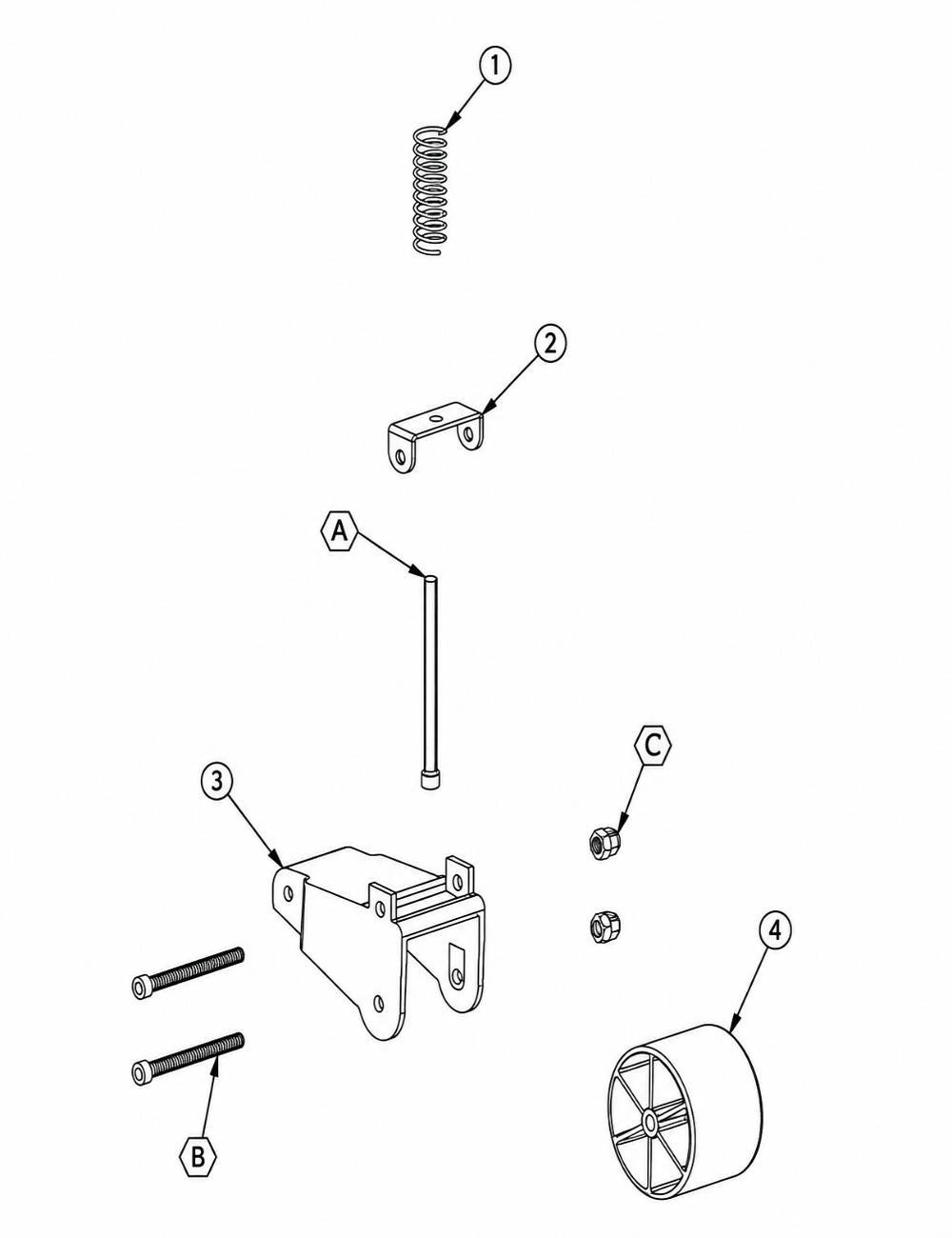

| 22310403740 | 07.18 | 9991327-ASSY | TENSION Wheel ASSY | Wave200 | 10,217.00 | 6,131.00 |
| 22310403745 | 07.18.01 | 3917037 | Spring Tension W200 | Wave200 | 4,154.00 | 2,493.00 |
| 22310401400 | 07.18.A | 3105580 | Screw M5x80 A2 | Wave200 | 528.00 | 317.00 |
| 22310403765 | 07.18.B | 3105600 | SCREW M5X60 A2 DIN912A | Wave200 | 348.00 | 209.00 |
| 22310401440 | 07.18.C | 3509350 | Nut M5 A2 DIN 985 | Wave200 | 183.00 | 110.00 |
| 22310403770 | 07.19 | 9982483 | Bearing: Driving | Wave200 | 7,104.00 | 4,263.00 |
| 22310403935 | 07.2 | 8881063 | WAVE 200 BOTTOM - CATALOG KIT | Wave200 o | - | - |
| — | 07.20 | — | WAVE 200 BOTTOM - CATALOG KIT | Wave200 | - | - |
| 22310403775 | 07.20.01 | 3860017 | Suction Tube Oring Silicon Wave | Wave200 | 2,770.00 | 1,662.00 |
| 22310403780 | 07.20.02 | 9982424 | Suction Tube Wave 200 | Wave200 | 2,770.00 | 1,662.00 |
| 22310403785 | 07.20.03 | 9982458 | Wheel Shaft Holder | Wave200 | 348.00 | 209.00 |
| 22310403790 | 07.20.04 | 9982459 | Wheel Bushing | Wave200 | 1,221.00 | 733.00 |
| 22310403795 | 07.20.05 | 5581018 | Anchor Wave 200 | Wave200 | 8,488.00 | 5,093.00 |
| 22310403800 | 07.20.06 | 9982411 | WAVE 200 LOWER BODY | Wave200 | 20,764.00 | 12,459.00 |
| 22310403805 | 07.20.07 | 9991334 | Bottom Cover + Vacuum Closing Wave | Wave200 | 3,296.00 | 1,978.00 |
| 22310403810 | 07.20.08 | 9982431 | Vacuum Strip L/R | Wave200 | 3,296.00 | 1,978.00 |
| 22310400835 | 07.20.B | 3379450-A | Screw KA40X12 | Wave200 | 183.00 | 110.00 |
| 22310403815 | 07.20.C | 3304418 | Screw DIN912 A2 M5X16 | Wave200 | 348.00 | 209.00 |
| 22310401440 | 07.20.D | 3509350 | Nut M5 A2 DIN 985 | Wave200 | 183.00 | 110.00 |
| 22310403820 | 07.20.E | 3379408-A | Screw WN1412 A2 KA40X8 | Wave200 | 183.00 | 110.00 |
| 22310404355 | 07.21 | 3889201 | Wave XL Belt (2020) | Wave200 | 20,764.00 | 12,459.00 |
| 22310403825 | 07.21od | 3889200 | Wave XL Belt (2017) | Wave200 | 233,660.00 | 140,196.00 |
| 22310400050 | 07.22 | 3865005 | HEXAGON ADAPTOR FOR D TYPE SHAFT | Wave200 | 1,039.00 | 624.00 |
| 22310403830 | 07.23 | 5581411 | Drive Belt T10-500 Wave 200 | Wave200 | 3,989.00 | 2,394.00 |
| 22310403835 | 07.24 | 9991330-ASSY | Wheel Assy Wave 200 | Wave200 | 25,954.00 | 15,573.00 |
| 22310403840 | 07.25 | 9982414 | Side Panel Wave 200 L | Wave200 | 5,027.00 | 3,017.00 |
| 22310403845 | 07.26 | 9991329-ASSY | Brush Arm Wave 200 Assy | Wave200 | 8,653.00 | 5,192.00 |
| 22310403720 | 07.26.02 | 9991333 | Gear T10/24 Wave 200 | Wave200 | 693.00 | 416.00 |
| 22310403735 | 07.26.04 | 5581609 | Bearing: Adjustable Wave 200 | Wave200 | 7,450.00 | 4,470.00 |
| 22310400715 | 07.26.A | 3379616-A | Screw KA50X16 (Retail) | Wave200 | 183.00 | 110.00 |
| 22310400030 | 07.27 | 9982332 | Cable Holder DB | Wave200 | 132.00 | 80.00 |
| 22310401135 | 07.28 | 5580633 | WaveRing Stopp. for WheelShaft | Wave200 | 1,039.00 | 624.00 |
| 22310403850 | 07.29 | 9982423 | Front Bumper | Wave200 | 7,450.00 | 4,470.00 |
| 22310403855 | 07.30 | 9982466 | Service Cover - Wave 200 | Wave200 | 2,425.00 | 1,455.00 |
| 22310403575 | 07.31 | 9982449 | WATER RELEASE FLAP | Wave200 | 348.00 | 209.00 |
| 22310403810 | 07.32 | 9982431 | Vacuum Strip L/R | Wave200 | 3,296.00 | 1,978.00 |
| 22310403860 | 07.A | 3305050-A | SCREW A2 WN1412 KA50X50 (Retail) | Wave200 | 348.00 | 209.00 |
| 22310400155 | 07.B | 3379440-A | Screw KA50X12 A2 WN1412 (Retail) | Wave200 | 132.00 | 80.00 |
| 22310400715 | 07.C | 3379616-A | Screw KA50X16 (Retail) | Wave200 | 183.00 | 110.00 |
| 22310403865 | 07.D | 3374410 | SCREW BN 5952 ECO FIX A2 M4X10 | Wave200 | 1,039.00 | 624.00 |
| 22310401440 | 07.E | 3509350 | Nut M5 A2 DIN 985 | Wave200 | 183.00 | 110.00 |
| 22310403765 | 07.F | 3105600 | SCREW M5X60 A2 DIN912A | Wave200 | 348.00 | 209.00 |
| 22310401390 | 07.G | 3374111 | Screw Tuf A2 Form - H M4 x 10 | Wave200 | 1,039.00 | 624.00 |
| 22310400835 | 07.H | 3379450-A | Screw KA40X12 | Wave200 | 183.00 | 110.00 |
เว็บไซต์นี้มีการใช้งานคุกกี้ เพื่อเพิ่มประสิทธิภาพและประสบการณ์ที่ดีในการใช้งานเว็บไซต์ของท่าน ท่านสามารถอ่านรายละเอียดเพิ่มเติมได้ที่
นโยบายความเป็นส่วนตัว และ นโยบายคุกกี้
- Home Home
- สินค้า สินค้า
- อะไหล่ อะไหล่
- ข่าวสาร/บทความ ข่าวสาร/บทความ
- ช่องทางชำระเงิน ช่องทางชำระเงิน
- เกี่ยวกับเรา เกี่ยวกับเรา
- ผลงานของเรา ผลงานของเรา
- ติดต่อเรา ติดต่อเรา
Home
Home
Home
Home
ข่าวสาร/บทความ
