89010107 Water Drain Set (V350-V700)
SKU : SP-89010107
āļāļēāļĒāđāļĨāđāļ§ 0 āļāļīāđāļ
āļāļģāļāļ§āļ
āļāļģāļāļāļīāļāļēāļĒāļŠāļīāļāļāđāļēāđāļāļāļĒāđāļ
89010107 Water Drain Set (V350-V700)Â (Update 19/03/2026)
āđāļāļĢāļāļāđ: EMAUX
āļĢāļēāļĒāļāļēāļĢāđāļāļĢāļ
āđāļāļĢāļĩāļĒāļāđāļāļĩāļĒāļ
Product description
SparePart V350-V700 Filter Emaux SAND FILTER
āļāļ°āđāļŦāļĨāđāļāļąāļāļāļĢāļāļ V SERIES V350/ V400/V450/ V500/ V650/ V700

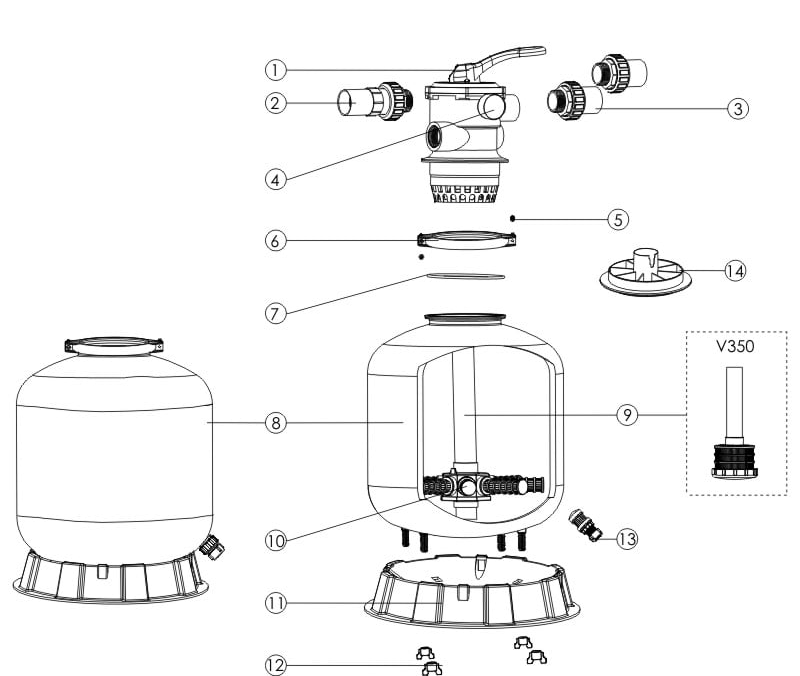

| KEY NO. | CODES | PART NO. | DESCRIPTIONS | PIECE(S) REQUIRED | Price 2026 (āļĢāļ§āļĄ VAT) | Website |
|---|---|---|---|---|---|---|
| 1 | - | 88280150 | 6 Way 1.5" Valve with 1.5" union set x 3 and pressure gauge (Black) | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | |
| 2 | 20650510005 | 89280101 | 1.5" Union with Sight Glass and O-Ring (Black/White colour) | 1 | 1,023.00 | 614.00 |
| 3 | 20651610045 | 89280102 | 1.5" union set with O-ring (Black) | 3 | 957.00 | 575.00 |
| 4 | 20320511020 | 06011029 | Maximum 40PSI Indication, Stainless Steel Casing | 1 | 1,714.00 | 1,029.00 |
| 4 | 20320510010 | 01111048 | Connector for Pressure Gauge/Stopper | 1 | 99.00 | 60.00 |
| 5 | 20320511105 | 89010119 | M6*50 Screws with Nut | 2 | 495.00 | 297.00 |
| 6 | 20320511030 | E010001 | Clamp Lock | 2 | 1,485.00 | 891.00 |
| 7 | 20320510155 | 02011134 | O-Ring for Filter Neck | 1 | 495.00 | 297.00 |
| 8 | 20320510160 | 89010114 | V350 Filter tank | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | |
| 8 | 20320510165 | 89010113 | V400 Filter tank | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | |
| 8 | 20320510170 | 89010112 | V450 Filter Tank | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | |
| 8 | 20320510175 | 89010111 | V500 Filter tank | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | |
| 8 | 20320510180 | 89010110 | V650 Filter tank | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | |
| 8 | 20320510185 | 89010109 | V700 Filter tank | 1 | āļāļīāļāļāđāļāļāđāļēāļĒāļāļēāļĒ | |
| 9 | 20320510190 | 89010106 | V350 Lateral Assembly with Center Pipe | 1 | 1,221.00 | 733.00 |
| 9 | 20320511125 | 89010118 | V400 Standpipe with hub | 1 | 1,221.00 | 733.00 |
| 9 | 20320511110 | 89010105 | V450 Lateral Assembly with Center Pipe | 1 | 1,221.00 | 733.00 |
| 9 | 20320511115 | 89010104 | V500 Lateral Assembly with Center Pipe | 1 | 1,485.00 | 891.00 |
| 9 | 20320511120 | 89010103 | V650 Lateral Assembly with Center Pipe | 1 | 1,485.00 | 891.00 |
| 9 | 20320511130 | 89010102 | V700 Standpipe with Hub | 1 | 1,485.00 | 891.00 |
| 10 | 20320510110 | 01172007 | Laterals (115mm) | 8 | 264.00 | 159.00 |
| 10 | 20320510115 | 01172008 | Laterals (126mm) | 8 | 264.00 | 159.00 |
| 11 | 20320511135 | 01111052 | V/P350 Filter Base | 1 | 1,155.00 | 693.00 |
| 11 | 20320510130 | 01111059 | 16-21inch Filter Base | 1 | 1,468.00 | 881.00 |
| 11 | 20320510135 | 01111062 | 21-28inch Filter Base | 1 | 3,428.00 | 2,057.00 |
| 12 | 20320511185 | 01181052 | Fastener for Filter Base | 4 | 495.00 | 297.00 |
| 13 | 20320511190 | 89010107 | Water Drain Set | 1 | 792.00 | 476.00 |
| 14 | 20320511195 | 01015006 | Sand Diverter (Black) for 1.5" | 1 | 495.00 | 297.00 |
