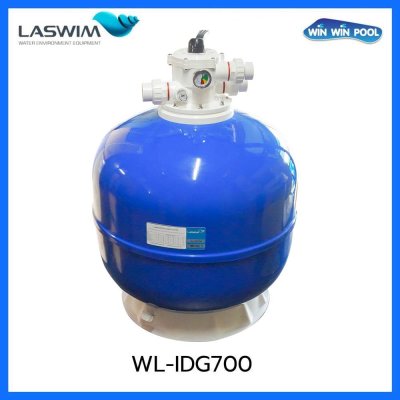

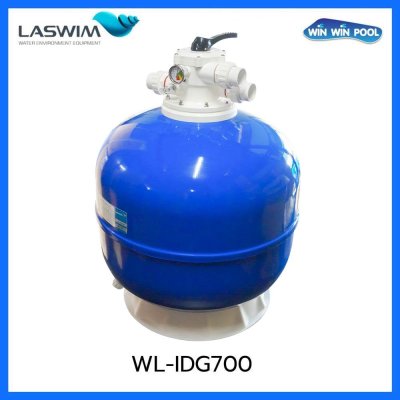

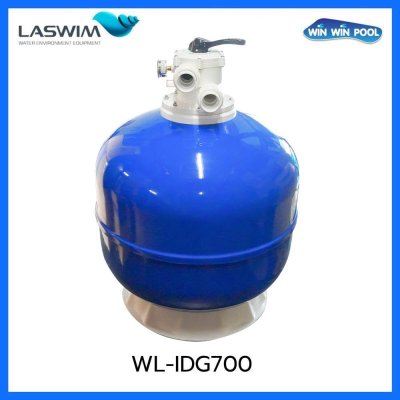

ถังกรองทราย WL-IDG700 ￠700mm/ 28" Top mount filter (polyester laminated) with 1.5'' Multiport Valve, blue color
SKU : FI-LS-SF-IDG700
ขายแล้ว 1 ชิ้น
฿32,453
฿15,578
จำนวน
คำอธิบายสินค้าแบบย่อ
ขนาด 28" Pipe Size (inches) 2" Flow rate 19 (m3/h) Sand Weight 190 (kg) (Update 04/03/2026)
แบรนด์: LASWIM
รายการโปรด
เปรียบเทียบ
รายละเอียดสินค้า
Download
WL-IDG Series Sand Filter
Laminated Sand Filters
Features
- Made of fiberglass reinforce laminated polyester
- Smooth and high brightness appearance
- 6-way multiport valve
- Sight glass for inspection of filtered water
- Easy maintenance, easy cleaning
- Maximum working pressure: 36psi/2.5kg/c㎡
- Maximum temperature: 50
| Model | Pipe Size (inches) | Filter Area | Design Flow (m3/h) | 0.5-0.8mm Sand Weight (kg) | Filter Dimeter (mm) | Filter High |
| WL-IDG400 | 1.5 | 0.13 | 6.0 | 30 | 400 | 750 |
| WL-IDG450 | 1.5 | 0.19 | 8.0 | 45 | 450 | 815 |
| WL-IDG500 | 1.5 | 0.20 | 10.0 | 80 | 500 | 860 |
| WL-IDG650 | 1.5 | 0.32 | 15.0 | 130 | 635 | 875 |
| WL-IDG700 | 2 | 0.38 | 19.0 | 190 | 700 | 1000 |
STANDARD: MAXIMUM WORKING PRESSURE: 36 psi/ 2.5 kg/cm MAXIMUM OPERATING WATER TEMPERATURES 50 oC MAXIMUM TESTING PRESSURE: 58 psi/4.0kg/cm OPTIONAL: MAXIMUM WORKING PRESSURE: 58psi4.Okglom MAXIMUM OPERATING WATER TEMPERATURES50'C MAXIMUM TESTING PRESSURE 86psi6.0kg/cm2
